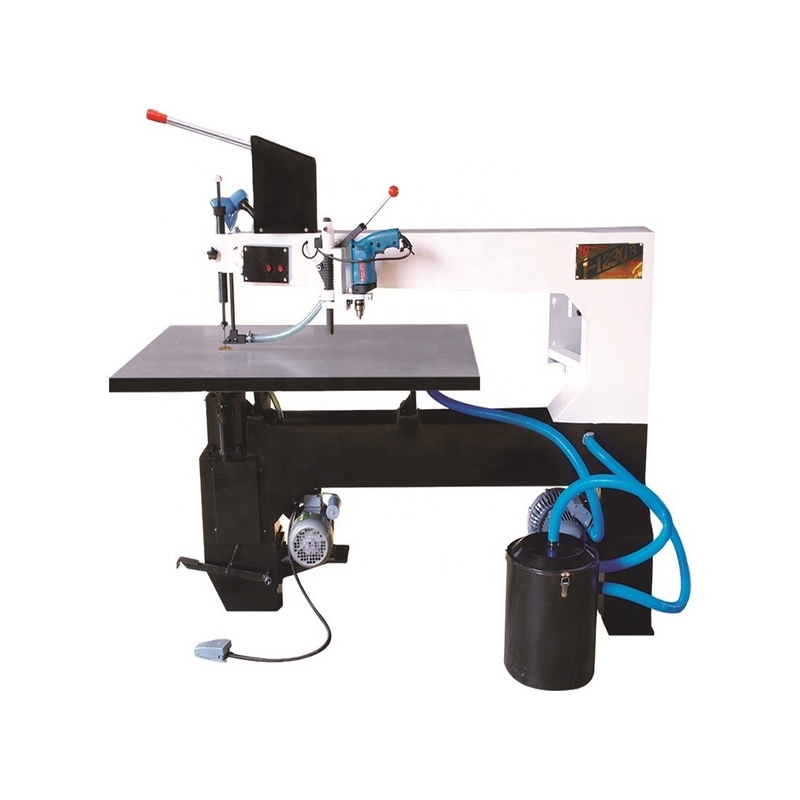

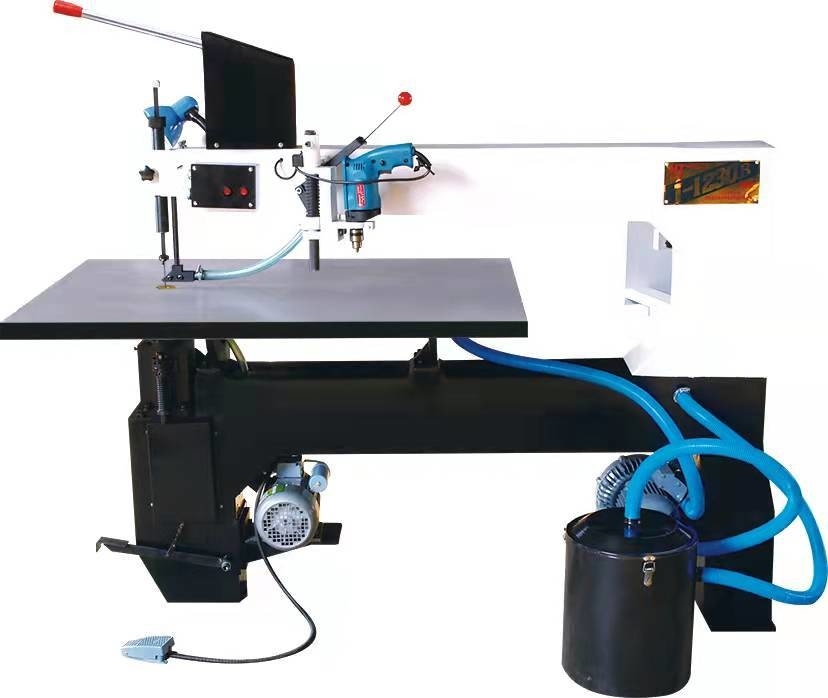

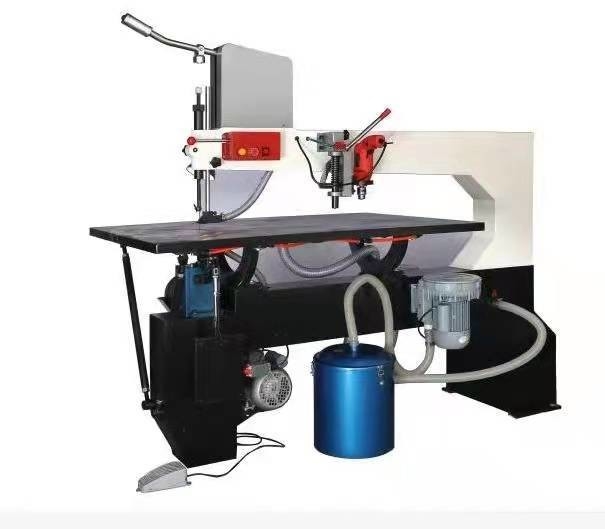

Competitive Jigging Saw Machine for Versatile Cutting Applications

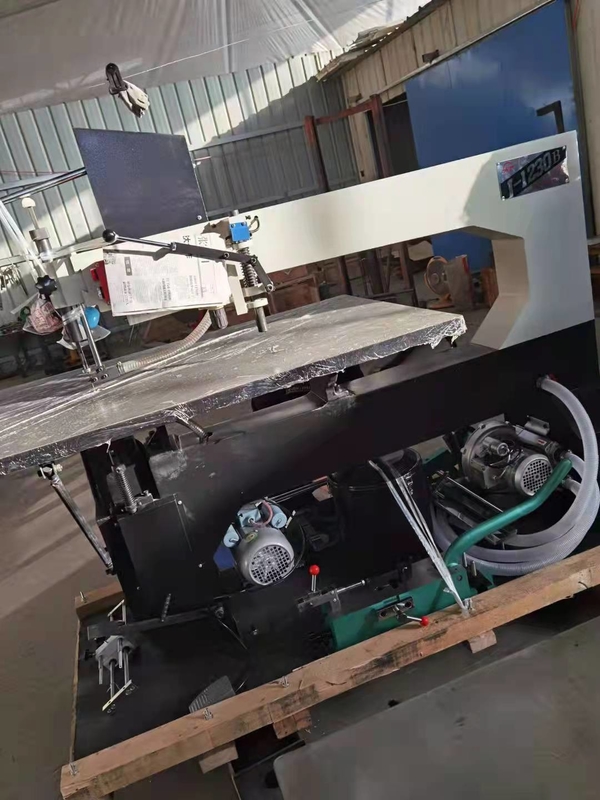

1)After the user receives the machine, the machine should be checked for damage in transit, and inventory packing list according to random attachment files

2)The machine should be removed from the wood end of the concrete surface to stabilize before testing machine

3)Install the card saw blade: The presser foot guide groove upward into the guide groove of the party with a tight sieve tight, the lower end of the saw blade is located above the platform. This machine adopts foot mount card saw blade, clamp the saw blade on it. . Use the right hand handle to depress the pedal while the right foot depresses the pedal to move the saw blade downwards and press it into the holding block below, gently lifting the right foot with the right hand releasing the handle, then the saw blade will jam, which Seed card installation effortless, and reliability

4)Saw movement: start the main motor switch, the saw blade will start up and down movement, this time if the saw blade is turned on for a short time, you can control by foot switch, if the long time to start or stop by hand button control

5)Press the electric drill handle 2, the micro switch is about to press the circuit, electric drill can turn, drilling in the board, release the handle, drill up to the highest point off the drill switch, stop the movement

6)Speed:The machine saw blade speed of three, according to the thickness of the wood factory plate pulley slot to change the speed of movement

7)Dust and levitation devices:The machine is equipped with a typhoon pump, the production of the wind pump received under the platform assigned to the inlet, the wind of the wind pump that is to reach the platform of the "floating exit", the wind pressure to the board "care" from the float , To achieve a smooth and relaxed, which is suspended.The machine has a suction pipe behind the presser foot, a vacuum cleaner seat under the saw blade under the platform, which is connected to the interface of the waste bucket. The vents above the waste bucket are connected to the air suction port of the air pump. Clean up the workbench, improve the working conditions of plate-making workers, but also ensure the health of workers. After a period of time in the workbench, it is necessary to check whether the waste bucket is full and clean the shavings in the bucket in time.

8)Illumination:In order to adapt to the dark conditions of the workbench, the machine is equipped with lights

9)In addition, this machine also increases the lateral adjustment of the saw blade device, the device has been adjusted in the assembly, and locking, to help generally do not need to move, the presser device can make sheet metal processing more stable, the height of the presser foot According to the thickness of the sheet to adjust

1)The oil level in the gearbox must exceed 2/3 of the oil level, and pay attention to regular replacement. The guide rod should be lubricated daily, and the daily work of the chuck should be cleaned up and dripped at the holding block. Always check the screws of each department. Top wire found loose and tighten in time

2)After the machine is fixed, the power supply should be connected to the electrical box at the rear of the machine. After that, the machine can be used to control the power supply with the knife switch available, and the work is completed. Pay attention to safety when operating the saw blade. Do not leave your fingers too close to the saw blade and remove the sawdust from the wood. When loading the saw blade, the main machine should be closed

1)Head frame ∮ 32 hole and the gearbox ∮ 16 axis with the same degree of <0.2mm

2)Holes crooked head frame and platform plane perpendicularity <0.15 mm / 100mm

3)Electrical system is safe and reliable

4)Drive system running smoothly

5)Saw mouth cross section smooth

6)Drill up and down back to light

7)Vacuum levitation work properly

8)Saw card installed safe and reliable

9)Smooth appearance of the machine, color generous, the same color, no cracks, peeling, bubble and so on
