Place of Origin:
Beijing, China
Brand Name:
Graphic
Model Number:
Auto
item | value |
Brand Name | Graphic |
Material | steel |
Model Number | 06-B |
Place of Origin | China |
Industrial Use | die making |
Raw Material: | Steel Rule |
Power: | Auto matic |
Extra Services: | Cutting Bending and Punching |
Application: | Die Making Die Cutting Bending Machine |
Type | Labor Cost Saving Bending Machine |
The Planeness: | +/- 0.05mm |
Precision after Bendi | +/-0.03mm |
The Min End Length of The Bending: | of The Bending: 1.5MM |
The Min Bulk Angle: | 85 degree |
Material Applied: | 0.45MM/0.53MM/0.71MM/1.05MM |
Model | Blade thickness (mm) | ||||
0.71 (2pt) | 1.07(3pt) | 1.42(4pt) | |||
Blade height (mm) | 23.8-60 | 23.8-60 | 23.8-60 | ||
Maximum bending angle | 100 | 90 | 80 | ||
Minimum bending radius of 90 degrees (mm) | 0.5 | 0.6 | 0.8 | ||
Minimum bending size of the front (mm) | 1.3 | 1.5 | 2 | ||
Minimum bending size of the Rear (mm) | >0 | >0 | >0.2 | ||

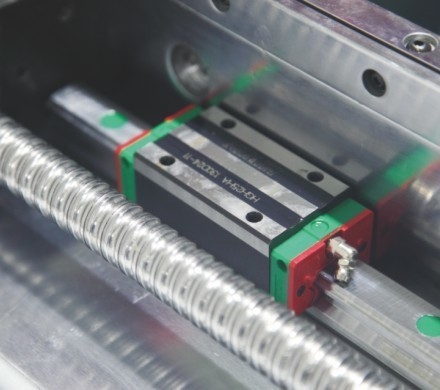

Feeding Accuracy | 0.03/300mm Panasonic Server Motor Combine with Precision ground ballscrew | ||||
Bending Flatness | 0.2/100mm Integrated more than 10 years of die making experience and Panasonic Server Motor with Japan imported Shimpoo reducer to achieve high balancing flatness of dies | ||||
Bridge Punching Mode | Autcmatic continuous bridge ptrehing, Bridge height adjustable 15-18mm) width (5-10mm) Gear Motor drive | ||||

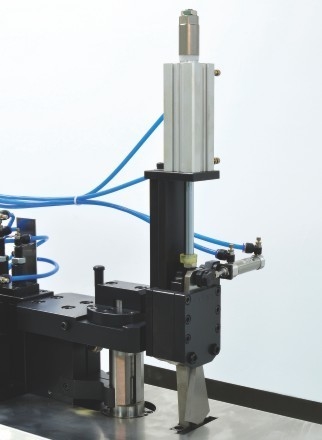

Cutting Mode | Automatic cut-off or swing(Automatic identification alarm and self Monitor) Gear Motor drive Full Power add olecranon pneumatic machine | ||||
Lipping | Auto Motor Driven One Cut. Lipping Height adjustable By Rules | ||||
Best Files Format | DXF、DWG、AL、CDR、PLT | ||||
Weight | 520kg | ||||
Volume | 2760 x1150 x1540mm | ||||
Power | 1.8kw 110V220V/50HZ 60HZ | ||||
Air Pressure | 0.6 Mpa | ||||
HS Code | 8462219000 | ||||
MOQ: | 1 Set |
Payment term: | T/T IN advance |
Packing: | 1 Set in a pallet |
Delivery time: | 20-40 days upon receipt of payment |
MOQ： | 1Set |
Delivery Time: | 7 days upon receipt of payment |
Payment Terms: | T/T in Advance or Western Union |
Packing : | 1 Set one box |
Weight: | About 8 kg |
