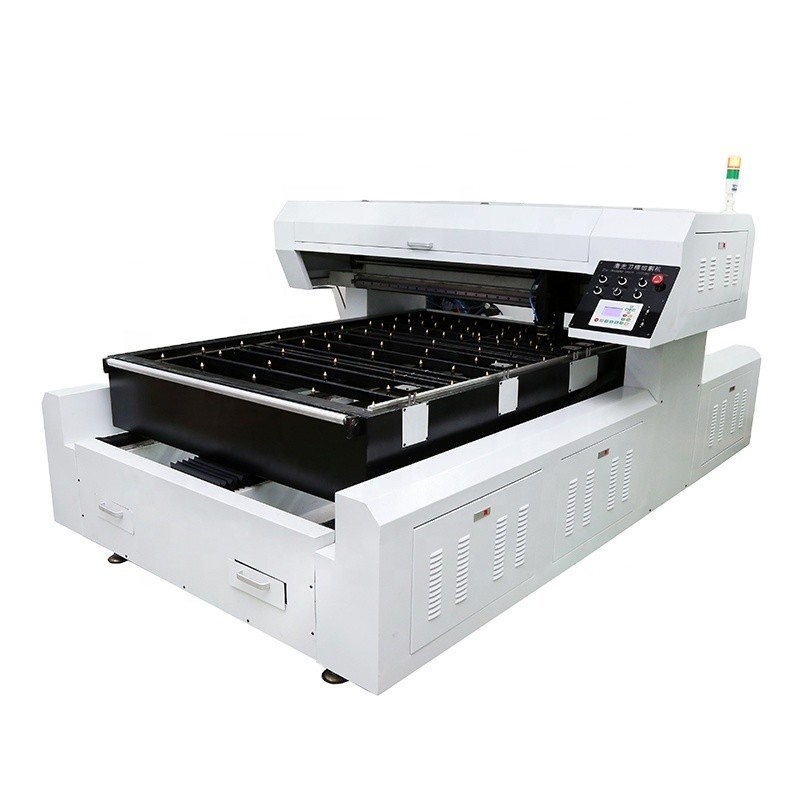

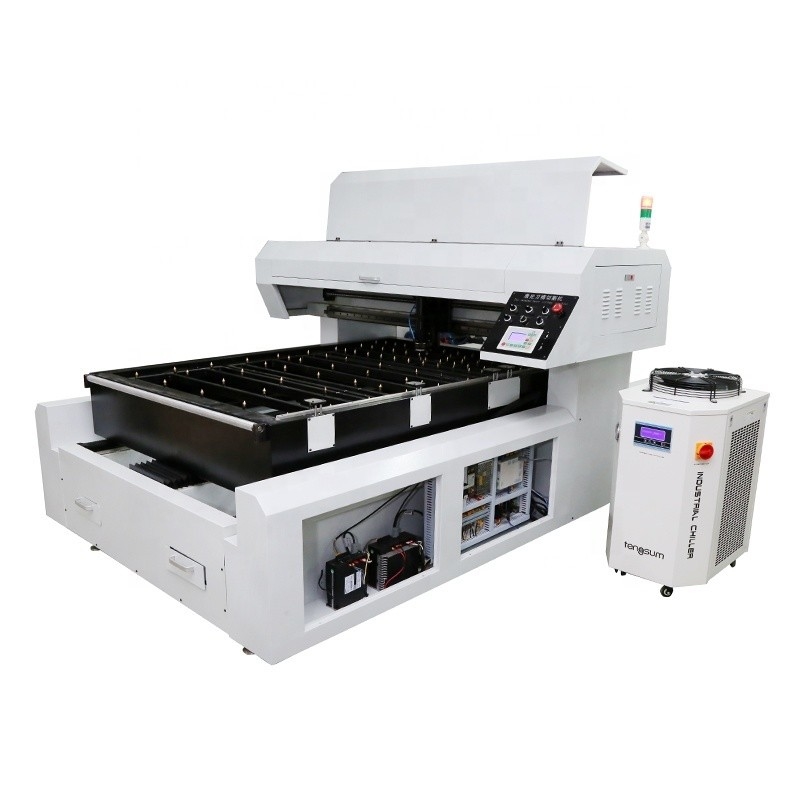

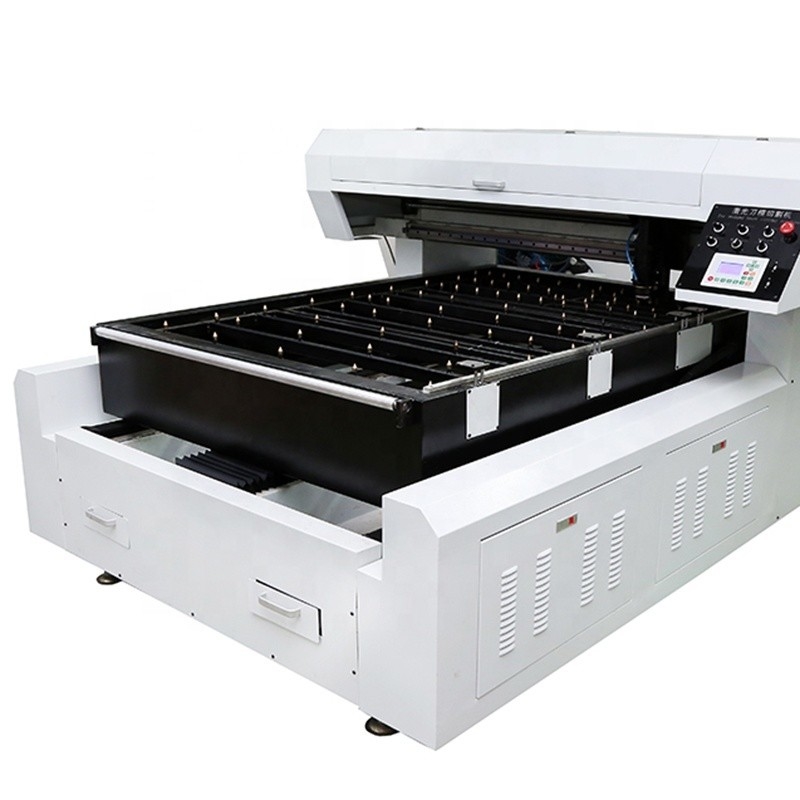

Name: 380v Graphic Beijing GIT1218-400W Flat Laser Die Cutting Machine with ≤0.02mm Re-Positioning Precision
Brand: Graphic
SKU: Graphic
Price: 18 USD
Availability: InStock
Rating: 4.8 (180 reviews)

Home > products > Steel Rule Bender Machine >

380v Graphic Beijing GIT1218-400W Flat Laser Die Cutting Machine with ≤0.02mm Re-Positioning Precision

Place of Origin:

Beijing, China

Brand Name:

Graphic

Request A Quote

Product Details

Applicable Industries:

Manufacturing Plant, Construction Works

Showroom Location:

None

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Marketing Type:

New Product 2020

Warranty Of Core Components:

1 Year

Core Components:

Engine, Motor

Condition:

New

Type:

Paper Cutting Machine

Automatic Grade:

Automatic

Voltage:

380v

Dimension(L*W*H):

4391*3930*1800mm

Weight:

1500 KG

Warranty:

1 Year

Key Selling Points:

Easy To Operate

Model No.:

GIT1218-400W

Power:

400W

The Table Style:

Cross Table Construction

Laser Source:

Laser Tube

X-axis Travel-length:

1200mm

Y-axis Travel-length:

1800mm

Re-Positioning Precision:

≤0.02mm

Cutting Width Kerf:

0.45mm, 0.71mm, 1.05mm, 1.07mm

Transmission System:

Ball Screw & Linear Guide (TAIWAN)

Optical System:

US Program

Port:

Tianjin Or Shanghai

Payment & Shipping Terms

Minimum Order Quantity

Price

$18,500.00 - $20,000.00/sets

Packaging Details

BOPP Thermal Lamination Film Jumbo Roll for Tape for Printing
PALLET

Supply Ability

300 Set/Sets per Month

Graphic Beijing Manual Die Cutting Machine for Creasing Matrix 0.4 Cutter Lightweight

Get Best Price

Industrial Grade Snipping Die Cutter Creasing Matrix 0.4 Scissors for Graphic Beijing

Get Best Price

Super March Manual Creasing Matrix Cutter for Die Cutter Laser Head None DWG Format

Get Best Price

Creasing Matrix Cutter with 16cm Height and Manual Functionality Design

Get Best Price

Contact Now

Product Description

Machine consist

400W laser tube

CNC Control system

Cast Iron frame

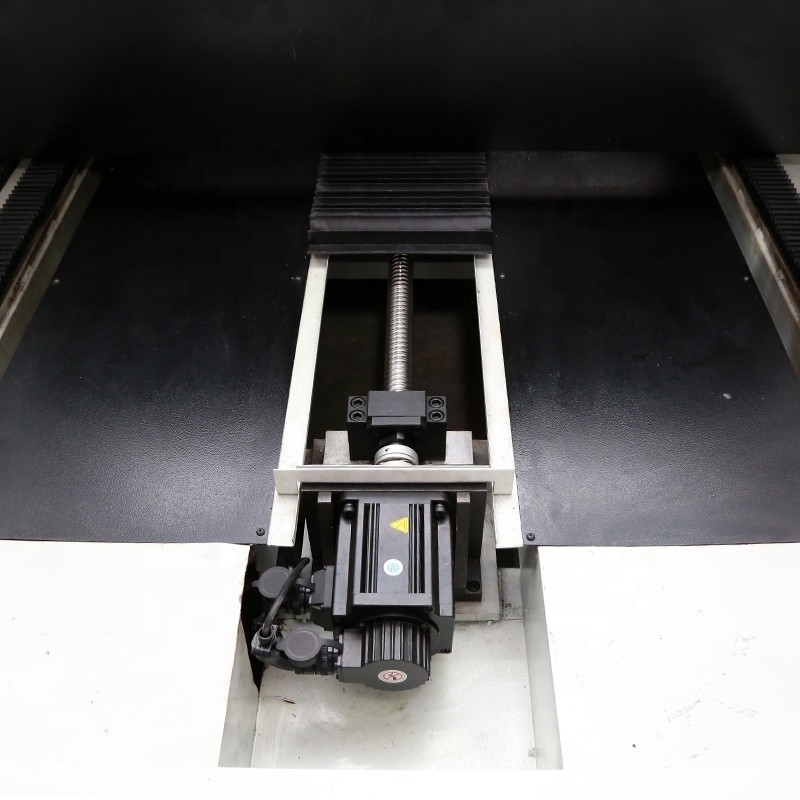

30mm Ball screw

Linear guide Germany REXROTH

Laser head head with fully enclosed design anti-dust, easy adjustable up and down function to control focal length

Applications

400W laser tube cutting machine is mainly for cutting various die board in color print industry, electronic products, and other light industry, sheet metal industry such as carbon steel, sheet, stainless steel sheet, aluminum alloy sheet; acrylic material, plastic material, and another non-metal sheet.

With stable body structure design, flexible working function, professional CNC control system, the cutting efficiency and quality has more advantages over traditional cutting method. This machine satisfies the die making factory, carton factory and other package& printing factory who need to make flat dies.

Technical Parameters

Model No.	GIT1218-400W
Power	400 W
The table style	Cross table construction
Laser source	laser tube
X-axis travel-length	1200mm
Y-axis travel-length	1800mm
Cutting speed	18 mm die board	2mm stainless steel
	30-36m/H	60m/H
Re-Positioning Precision	≤0.02mm
Cutting width kerf	0.45mm, 0.71mm, 1.05mm, 1.07mm
Transmission system	Ball screw & Linear guide (TAIWAN)
Driving system	made in china
Optical system	US program
Moving structure	Cross table
Overall dimensions (LWH)	439139301800mm
Gross Weight	1500kg
Laser cutting thickness	1-25mm

Machine Environment Requirements

* Total required rated power: 5KVA.
* 220V, 50～60HZ
* Machine environmental requirements:
Temperature Requirements: 5～30℃; Humidity: ≤ 70%.
* In accordance with the drawing’s foundation provided
* Specific cable length is determined depending on the user site
* AR acetone or high purity alcohol each minimum 50 ML
* Air compressor: 4P
* Drying machine
* Flat floor with strong concrete, floor level less than 20mm

INSTALLATION & TRAINING TERMS

1) Beijing Graphic International Trade Co Ltd company, hereinafter referred to as Beijing Graphic, provides technical training for the operators. Training content is including training of installation, mechanical operation, and software operation.
2）Once the BUYER and the SELLER confirm the cooperation, the BUYER can send their technician(s) to the SELLER’s factory for the training.
3）Within 15 days after receipt the BUYER’s written notice, the SELLER Beijing Graphic will send the competent engineer(s) for the contract equipment’s installation, commissioning, acceptance test and training for the BUYER’s operators (max. 2 persons) for a total period of 7(seven) working days. The training of machine and software should done by the SELLER Beijing Graphic The expenses of the SELLER’s technician(s), such as for traveling, accommodation, air tickets, and meal allowance, shall be undertake by the BUYER.

GUARANTEE

The SELLER’s guarantee that the commodity hereof is made of the best materials with first class workmanship, complies in all respects with the quality and specifications stipulated in this contract.
1. Our guarantee is 12 months.
2. Every time our technician is sent to fix any problem of the machine or upgrade the machine, the BUYER shall provide the technician(s) with round trip air tickets, hotel and food.
3. Within 12 months, the SELLER shall dispatch skilled technician(s) to carry out after-sales service in a timely manner with free fixing fee
4. Beyond 12 months, the SELLER will send an engineer in condition time for buyer’s request. The BUYER shall pay fixing fee and salary for the technician(s). It is 150USD per working day per person.
5. Upgrading is free of charge, but the technician cost is on buyer’s side.

AFTER-SALES SERVICE SUPPORT

1) After sales service support procedure is as below:
Operator(s) is required to send the documents with pictures and descriptions of the concerns of the machine. Within 24 hours, our technician will make response to the concerns of the machine.
2)We will teach the operator(s) how to find the problem and give them process to resolve the problem.
3) If on line service cannot resolve it, we will send our technician to the BUYER’s site.
4) software:On-line service used as the problem-solving methods, such as Team-viewer, WeChat, WhatsApp, phone call.
5) spare parts:
1. Accessories needed, normal operate damage within warranty time, accessories cost is in the SELLER’s side, ship cost is in
BUY’s side; If wrong use damage or abnormal damage, all the cost is in BUY’s side.
2. We suggest the BUYER prepare some normal spare parts for the quick repair.
3. The accessories can be expressed in 3-7 days in the BUYER’s request if its in stock.

Functions

* Cross table structure, stable working, small floor space required for machine.
* Adopt domestic most advanced 400W CO2 sealing type water-cooled laser tube, combined with good precision of CNC control mechanical systems. It can reach cutting die manufacturing precision and at the same time greatly reduce the production cost.Suitable for wooden cutting die and precision electronic cutting die production.
* Using split type fixed optical path structure, to avoid the high-power cutting size problem because of the optical path
deviation.
* Unique smoke exhausts design; create a good working environment for you. Using the most advanced laser tube in China and no need to add any auxiliary gas when cutting, laser cutting die consumption is extremely low. Only 220v external power source is needed and making low cost. There is no need to wait long time for start and running the machine.
* Can one-time cutting 15mm-23mm plywood, PVC board, organic glass. The cutting line width can be 0.45mm, 0.71mm, 1.05mm, 1.42mm etc.
* Simple and clear-cutting line adjustment technology. Cutting software can be compatible with AutoCAD. CorelDraw, Adobe Photoshop. Editing path is very easy and convenient.

Laser tube Characters

* All the optical lens imported from USA II VI Inc. making laser output power higher and more stable pattern, all the optical
lens assembly are in the 100% clean room to complete, is the only manufacturer with clean assembly room.

* Entirely through ISO9002 quality system certification of the manufacturers, is the only one to do CO2 laser manufacturers through this certification.

Q1: Are you factory direct?
A1:Beijing Graphic Inte’l Trade company as a professional creasing matrix and paper cutting knife manufacturer was established in 2012, specialized in die cutting creasing matrix, paper cutting knife and paper drill bits and pneumatic waste stripper and other related products.
Our products are mainly exported to USA, Canada, Europe, South America, etc.Over 120 countries and area.

Q2:What’s your product ranges?
A2: Our main product is packaging material, main product are die cutting creasing matrix, paper cutting knives , paper drill bits, pneumatic waste stripper and so on.

Q3:Do you have a special price and service for wholesale?
A3: Beijing Graphic Inte’l Trade company is keeping search a long term business cooperation with our clients as a professional creasing matrix manufacturer.

we can OEM &ODM for our cilents, fully support and assist on service, to offer you the most competitive price with high quality product.

Q4: What payment methods can I use? And how secure is my payment?
A4: Beijing Graphic Inte’l Trade company accept your payment through Paypal, Bank Transfer,Western Union,etc.

Q5:How long does it take for my order to be shipped? And how long can I receive it?
A5:Generally, your order will be shipped within 3~7 working days after your payment received by us.

Beijing Graphic Inte’l Trade company devotes to be a fastest delivery led lights supplier.

Q6: How about the warranty?
A6: Beijing Graphic Inte’l Trade company welcome you to contact us at 24 hours per day, 7 days per week, your any question will be highly appreciated. hotline: 0086-10-87227832
