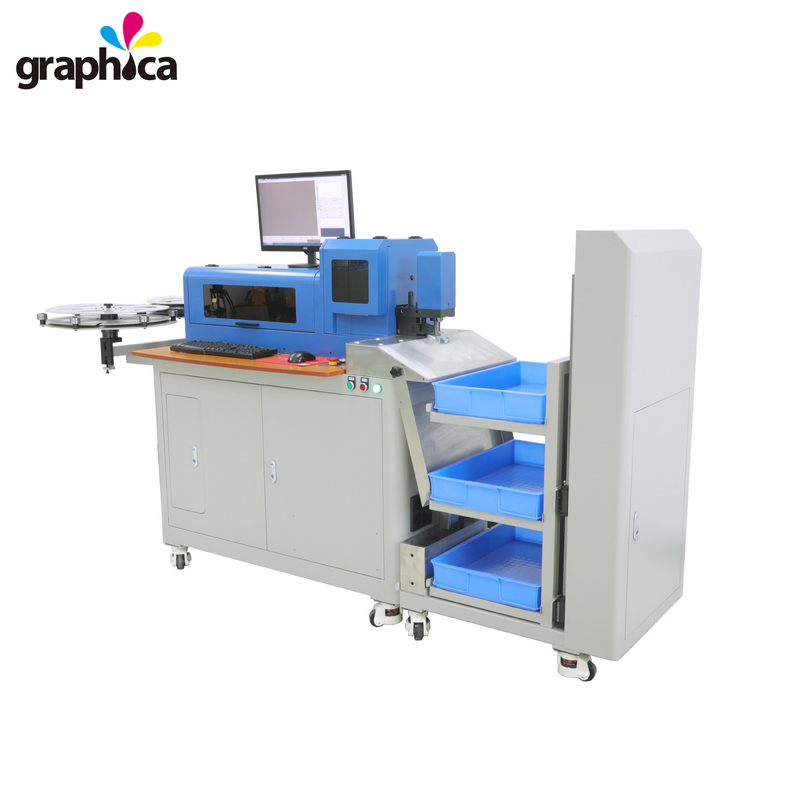

Name: Die Steel Cutting Rule Making Bending Machine with Extra Bending and Cutting Services
Brand: Graphic
SKU: GR06B
Price: 18 USD
Availability: InStock
Rating: 4.8 (173 reviews)

Home > products > Steel Rule Bender Machine >

Die Steel Cutting Rule Making Bending Machine with Extra Bending and Cutting Services

Place of Origin:

Beijing China, Beijing , China

Brand Name:

Graphic

Model Number:

GR06B

Request A Quote

Die Steel Cutting Rule Making Bending Machine with Extra Bending and Cutting Services

Product Details

Condition:

New

Machine Type:

Strip Sheet Bending Machine

Video Outgoing-inspection:

Provided

Core Components:

PLC

Weight (KG):

520kgs

Applicable Industries:

Printing Shops, Advertising Company, Printing Packing

Material / Metal Processed:

Carbon Steel

Extra Services:

Bending Bridge Cutting Lipping Broaching Nicking Perforation

Warranty:

Free Warranty For Software

Payment & Shipping Terms

Minimum Order Quantity

Price

$18,000.00/sets 1-1 sets

Graphic Beijing Manual Die Cutting Machine for Creasing Matrix 0.4 Cutter Lightweight

Get Best Price

Industrial Grade Snipping Die Cutter Creasing Matrix 0.4 Scissors for Graphic Beijing

Get Best Price

Super March Manual Creasing Matrix Cutter for Die Cutter Laser Head None DWG Format

Get Best Price

Creasing Matrix Cutter with 16cm Height and Manual Functionality Design

Get Best Price

Contact Now

Product Description

型号 m o d e l	BJGR04-B
刀片厚度(mm) Blade thickness (mm)	_0.71/2pt	_1.07/3pt
刀片高度(mm) Blade height (mm)	_23.8-32	_23.8-32
最小90度弯曲半径 Minimum 90 degree bending radius	_0.5	_0.6
前部最小弯曲尺寸 Minimum front bending dimension	_1.3	_1.5
最佳图形格式 Best Graphic Format	_{DXF/DWG/AL/CDR/PLT}
设备重量 Equipment weight	520KG
机器体积 Machine volume	*_{230011001400}*
运输体积 Transport volume	*_{17008001400}*
总功率 Total power	^{1.8kw 110v220v/50hz 60hz}
气压 Barometric pressure	_0.6mpa

Features:

·Self-developed dynamic exchangeable double clip feeding system,sustainable circulation feeding,there are Improve the overall production speed and bending accuracy. ·The equipment has automatic bending,punching,lipping,bridge position and other functions. ·Unique bending shear integrated mold design,can effectively improve the working efficiency of the whole machine,Save labor and reduce the use cost .

·Cutting power using imported oil pressure system,cutting force,good stability,can achieve seamless knife.

Machine advantage

Free of charge Long life software update system and control card as we use self developped software.

Features:

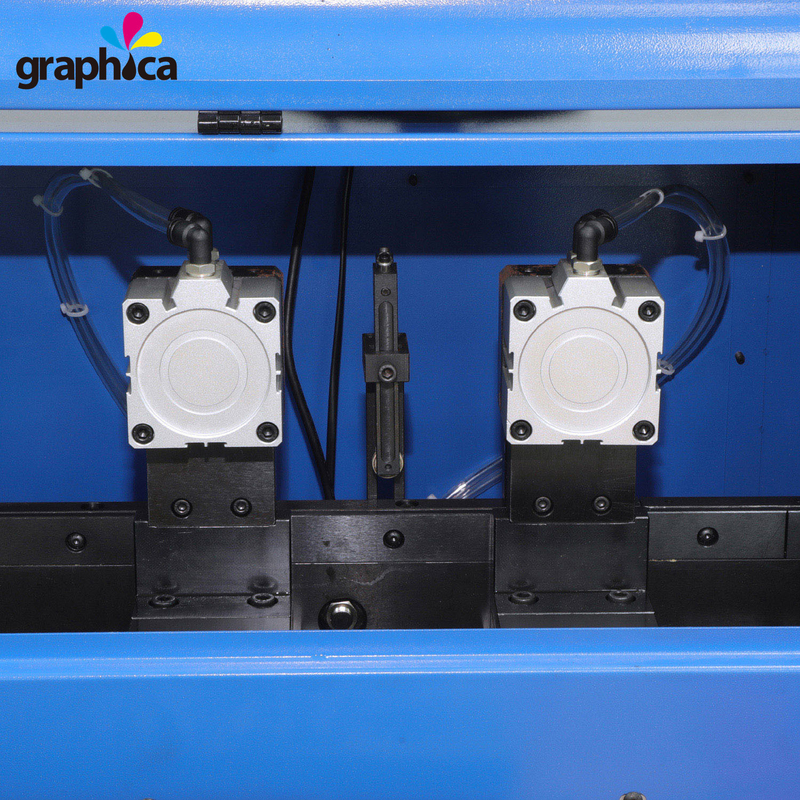

The machine adopts a dynamic interchangeable clamping knife control system and double clamping cycle feeding to maximize the production speed and bending accuracy of the entire machine.

Features:

1. Customized straight cutting and lipping molds according to the blade angle, and processed the blade flat to achieve seamless connection. 2. The height of the bridge can be adjusted by itself, and the processing width can be automatically adjusted through software.

Features:

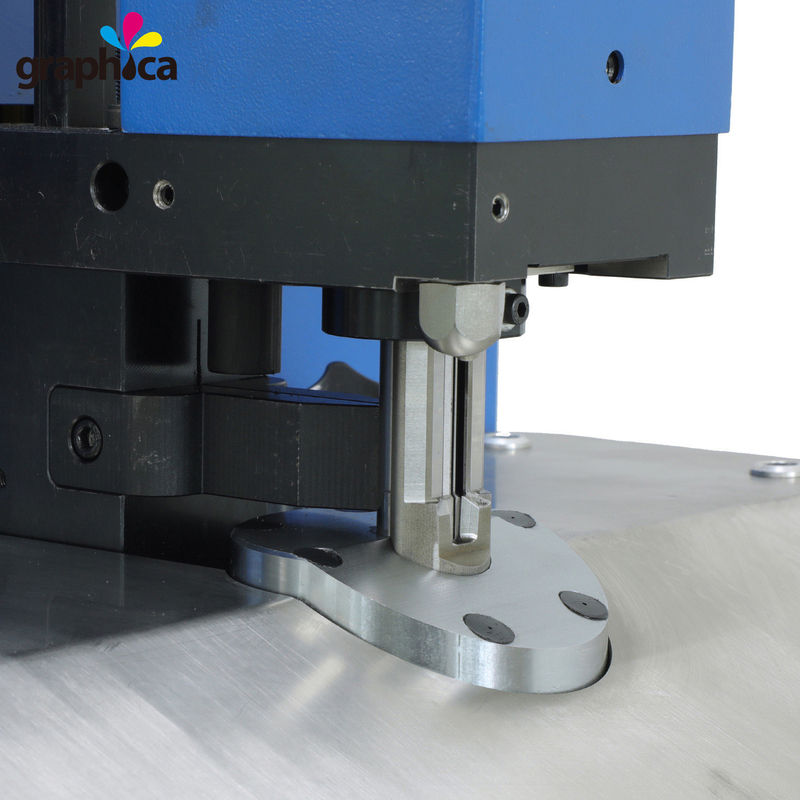

It adopts a new patented design to realize the integration of bending and shearing, effectively improving the work efficiency of the equipment. At the same time, the unique integrated bending and shearing design can realize the cutting without manual supervision, which can effectively save labor and improve the safety。

Hardware characteristics

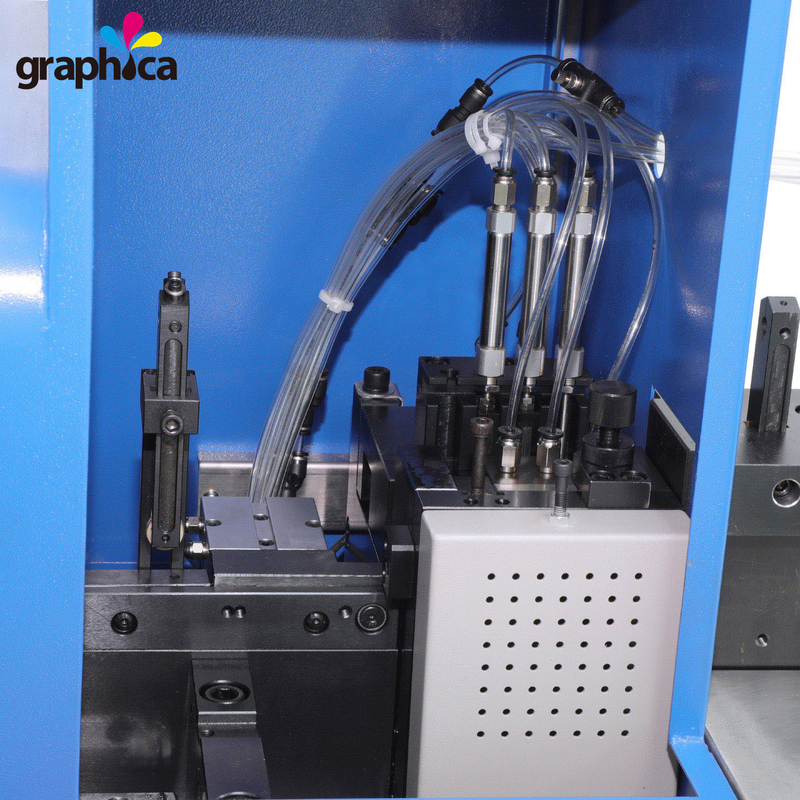

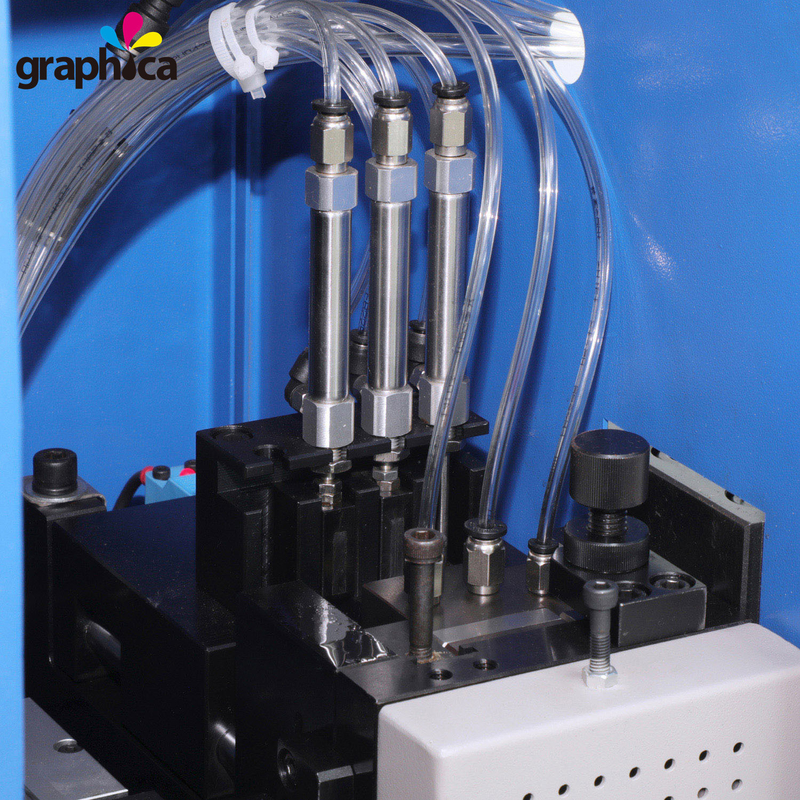

1. Independent research and development of positive and negative double screw dynamic exchange clamp structure, recycling feeding, improve the production efficiency and precision of the machine. 2. The frame is welded with high strength square steel, and the assembly surface is processed with gantry milling at one time to ensure the accuracy and stability of the machine. 3. Impact bridge power cylinder, fast speed, good stability, simple and convenient. 4. One time cutter which is high speed and no waste.

Motor Panasonic

Servo Panasonic

Double ball screw feeding system

Separate circuit box

Ball screw

Linear guide

FAQ

INSTALLATION & TRAINING TERMS

1) Beijing Graphic International Co Ltd company, hereinafter referred to as Beijing Graphic, provides technical training for the operators. Training content is including training of installation, mechanical operation, and software operation. 2）Once the BUYER and the SELLER confirm the cooperation, the BUYER can send their technician(s) to the SELLER’s factory for the training. 3）Within 15 days after receipt the BUYER’s written notice, the SELLER Beijing Graphic will send the competent engineer(s) for the contract equipment’s installation, commissioning, acceptance test and training for the BUYER’s operators (max. 2 persons) for a total period of 7(seven) working days. The training of machine and software should be done by the SELLER Beijing Graphic The expenses of the SELLER’s technician(s), such as for traveling, accommodation, air tickets, and meal allowance, shall be undertake by the BUYER.

GUARANTEE

The SELLER’s guarantee that the commodity hereof is made of the best materials with first class workmanship, complies in all respects with the quality and specifications stipulated in this contract. 1.Our guarantee is 12 months. 2.Every time our technician is sent to fix any problem of the machine or upgrade the machine, the BUYER shall provide the technician(s) with round trip air tickets, hotel and food. 3.Within 12 months, the SELLER shall dispatch skilled technician(s) to carry out after-sales service in a timely manner with free fixing fee 4.Beyond 12 months, the SELLER will send an engineer in condition time for buyer’s request. The BUYER shall pay fixing fee and salary for the technician(s). It is 150USD per working day per person. 5.Upgrading is free of charge, but the technician cost is on buyer’s side.

AFTER-SALES SERVICE SUPPORT

1) After sales service support procedure is as below: Operator(s) is required to send the documents with pictures and descriptions of the concerns of the machine. Within 24 hours, our technician will make response to the concerns of the machine. 2)We will teach the operator(s) how to find the problem and give them process to resolve the problem. 3) If on line service cannot resolve it, we will send our technician to the BUYER’s site. 4) software: On-line service used as the problem-solving methods, such as Team-viewer, WeChat, WhatsApp, phone call. 5) spare parts: a. Accessories needed, normal operate damage within warranty time, accessories cost is in the SELLER’s side, ship cost is in BUY’s side; If wrong use damage or abnormal damage, all the cost is in BUY’s side. b. We suggest the BUYER prepare some normal spare parts for the quick repair. c. The accessories can be expressed in 3-7 days in the BUYER’s request if its in stock.
