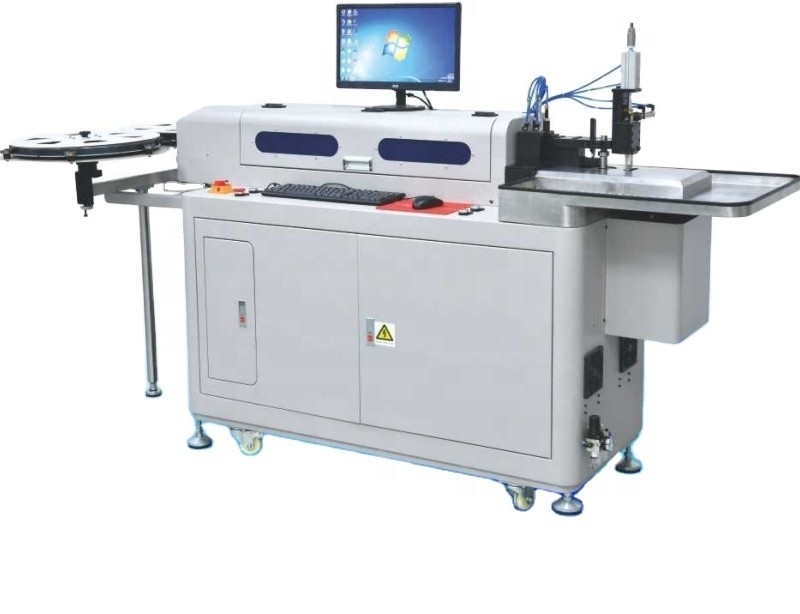

Name: 2022 Year Intelligent Steel Rule Bender Rules hight 23.8-32mm Graphic 04 CNC Bender
Brand: Graphic
SKU: Graphic
Price: 14 USD
Availability: InStock
Rating: 4.5 (167 reviews)

Home > products > Steel Rule Bender Machine >

2022 Year Intelligent Steel Rule Bender Rules hight 23.8-32mm Graphic 04 CNC Bender

Place of Origin:

Beijing, China

Brand Name:

Graphic

Request A Quote

Product Details

Condition:

New

Machine Type:

Steel Rule Bender

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Marketing Type:

Hot Product 2022

Warranty Of Core Components:

1 Year

Core Components:

PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump

Raw Material:

Steel Bar

Material / Metal Processed:

Carbon Steel

Power:

Computer

Automation:

Automatic

Extra Services:

Slotting & Notching

Year:

2022

Weight (KG):

520

Key Selling Points:

Self Developed Software

Warranty:

1 Year

Applicable Industries:

Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advertising Co

Showroom Location:

Brazil

Place Of Origin::

Beijing, China

Condition::

New

Automation::

Automatic

Extra Services::

Cutting,Lipping,Bridging,Nicking,

Rule Thickness:

2pt-3pt

Rules Hight:

23.8-32mm

Precision After Bending:

+/-0.03mm

The Min End Length Of The Bending:

1.5MM

After Warranty Service::

Video Technical Support, Online Support, Spare Parts

Material Applied::

0.71MM/1.07MM

Port:

Shenzhen Guangzhou Shanghai

Payment & Shipping Terms

Minimum Order Quantity

Price

$14,999.00/sets 1-1 sets

Packaging Details

Auto Intelligent Steel Rule Bender graphic04 Steel Rule CNC Bender Competitive Price
Packing: wrapping film and packed in pallet

Supply Ability

50 Set/Sets per Month

Graphic Beijing Manual Die Cutting Machine for Creasing Matrix 0.4 Cutter Lightweight

Get Best Price

Industrial Grade Snipping Die Cutter Creasing Matrix 0.4 Scissors for Graphic Beijing

Get Best Price

Super March Manual Creasing Matrix Cutter for Die Cutter Laser Head None DWG Format

Get Best Price

Creasing Matrix Cutter with 16cm Height and Manual Functionality Design

Get Best Price

Contact Now

Product Description

Specification

item	value
Brand Name	Graphic
Material	steel
Model Number	VK04
Place of Origin	China
Industrial Use	die making
Raw Material:	Steel Rule
Power:	Auto matic
Extra Services:	Cutting Bending and Punching
Application:	Die Making Die Cutting Bending Machine
Type	Labor Cost Saving Bending Machine
The Planeness:	+/- 0.05mm
Precision after Bendi	+/-0.03mm
The Min End Length of The Bending:	of The Bending: 1.5MM
The Min Bulk Angle:	85 degree
Material Applied:	0.45MM/0.53MM/0.71MM/1.07MM

Details Images

Bending

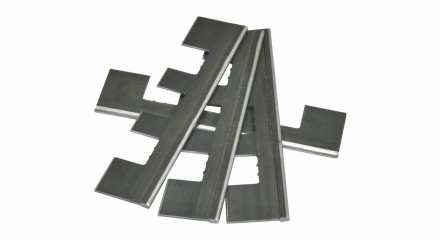

Lipping

Punching

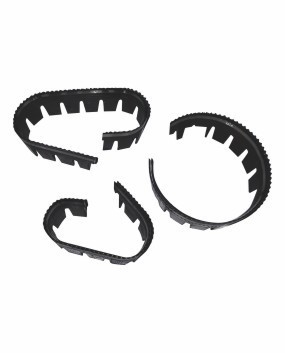

Bridging

Cutting

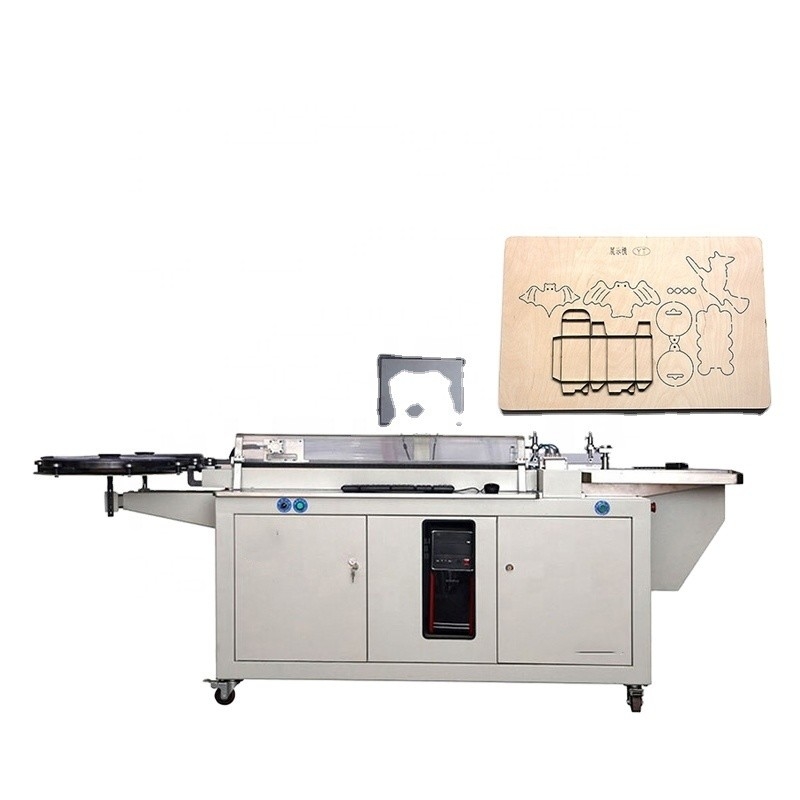

Samples

Part feature

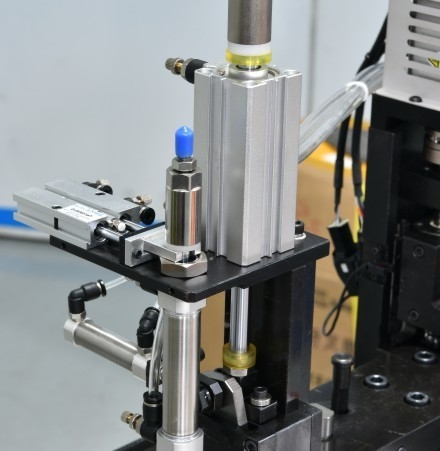

Cutting Sets Bridging Punching Sets Feeding Sets

.Manual Lipping

Technical Parameters

Model	Blade thickness (mm)
	0.45	0.71	1.07
Blade height (mm)	8-25	8-25	32
Maximum bending angle	100	100	90
Minimum bending radius of 90 degrees (mm)	0.4	0.5	0.8
Minimum bending size of the front (mm)	1.0	1.5	2
Minimum bending size of the Rear (mm)	>0	>0	>0

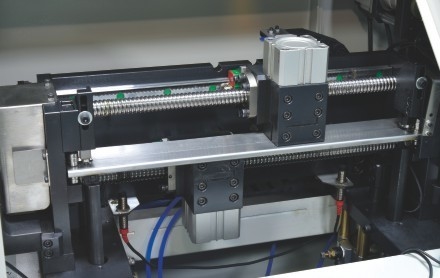

Feeding Accuracy	0.03/300mm Panasonic Server Motor Combine with Precision ground ballscrew
Bending Flatness	0.2/100mm Integrated more than 10 years of die making experience and Panasonic Server Motor with Japan imported Shimpoo reducer to achieve high balancing flatness of dies
Bridge Punching Mode	Autcmatic continuous bridge ptrehing, Bridge height adjustable 15-18mm) width (5-10mm) Gear Motor drive
Cutting Mode	Automatic cut-off or swing(Automatic identification alarm and self Monitor) Gear Motor drive Full Power add olecranon pneumatic machine
Lipping	Auto Motor Driven One Cut. Lipping Height adjustable By Rules
Best Files Format	DXF、DWG、AL、CDR、PLT
Weight	520kg
Volume	2600x1025 x1470mm
Power	1.8kw 110V220V/50HZ 60HZ
Air Pressure	0.6 Mpa

Packing & Delivery

MOQ:	1 Set
Payment term:	T/T IN advance
Packing:	1 Set in a pallet
Delivery time:	20-40 days upon receipt of payment

MOQ：	1Set
Delivery Time:	7 days upon receipt of payment
Payment Terms:	T/T in Advance or Western Union
Packing :	1 Set one box
Weight:	About 8 kg

Q1: Are you factory direct?
A1:Beijing Graphic Inte’l Trade company as a professional creasing matrix and paper cutting knife manufacturer was established in 2012, specialized in die cutting creasing matrix, paper cutting knife and paper drill bits and pneumatic waste stripper and other related products.
Our products are mainly exported to USA, Canada, Europe, South America, etc.Over 120 countries and area.

Q2:What’s your product ranges?
A2: Our main product is packaging material, main product are die cutting creasing matrix, paper cutting knives , paper drill bits, pneumatic waste stripper and so on.

Q3:Do you have a special price and service for wholesale?
A3: Beijing Graphic Inte’l Trade company is keeping search a long term business cooperation with our clients as a professional creasing matrix manufacturer.

we can OEM &ODM for our cilents, fully support and assist on service, to offer you the most competitive price with high quality product.

Q4: What payment methods can I use? And how secure is my payment?
A4: Beijing Graphic Inte’l Trade company accept your payment through Paypal, Bank Transfer,Western Union,etc.

Q5:How long does it take for my order to be shipped? And how long can I receive it?
A5:Generally, your order will be shipped within 3~7 working days after your payment received by us.

Beijing Graphic Inte’l Trade company devotes to be a fastest delivery led lights supplier.

Q6: How about the warranty?
A6: Beijing Graphic Inte’l Trade company welcome you to contact us at 24 hours per day, 7 days per week, your any question will be highly appreciated. hotline: 0086-10-87227832
