Cutting Creasing Matrix Machine for Graphic Matrix Cutting and Creasing

Cutting Creasing Matrix Machine for Graphic Matrix Cutting and Creasing

Place of Origin:

Beijing, China

Brand Name:

Graphic

Model Number:

GR-YH1

Contact Us
Request A Quote
Cutting Creasing Matrix Machine for Graphic Matrix Cutting and Creasing Cutting Creasing Matrix Machine for Graphic Matrix Cutting and Creasing Cutting Creasing Matrix Machine for Graphic Matrix Cutting and Creasing Cutting Creasing Matrix Machine for Graphic Matrix Cutting and Creasing Cutting Creasing Matrix Machine for Graphic Matrix Cutting and Creasing Cutting Creasing Matrix Machine for Graphic Matrix Cutting and Creasing
Product Details
Product Name:
Auto Crease Matrix Cutter
Creasing Matrix Specification:
0.3--3mm
Speed:
1-50 Times/minute
Voltage:
220V 50 Hz
Overall Weight:
40KG
Dimensions:
450*310*450mm
Brand::
Graphic
Material::
Stainless Steel
Application::
Cutting Creasing Matrix
Packaging:
1set/carton
Payment & Shipping Terms
Minimum Order Quantity
1
Price
$2,200.00/sets 1-1 sets
Packaging Details
Chamfer matrix Matrix
Packing:1 pcs/wooden box
Machine Size :750*400*240mm
G.W: 22.5KG
N.W: 13.6KG
Delivery:Within 3-9 days upon receive payment
RELATED PRODUCTS
Good price 2024 Die Cutting Steel Shim Tape for Patching 1kgs Gross Weight Thickness 0.03-0.05 online

2024 Die Cutting Steel Shim Tape for Patching 1kgs Gross Weight Thickness 0.03-0.05

Get Best Price
Good price Die Cutting Steel Shim Tape for Patching Gross Weight 1kgs Packaging Type Cartons online

Die Cutting Steel Shim Tape for Patching Gross Weight 1kgs Packaging Type Cartons

Get Best Price
Good price Cartons Packaging Die Cutting Steel Shim Tape for Patching 1kg Gross Weight online

Cartons Packaging Die Cutting Steel Shim Tape for Patching 1kg Gross Weight

Get Best Price
Good price Direct Patching Of Cutting Die Made Easy With Steel Shim Tape 0.07mm 0.1mm Thickness online

Direct Patching Of Cutting Die Made Easy With Steel Shim Tape 0.07mm 0.1mm Thickness

Get Best Price
Contact Us
Contact Now
Product Description

Cutting Creasing Matrix Machine for Graphic Matrix Cutting and Creasing 0

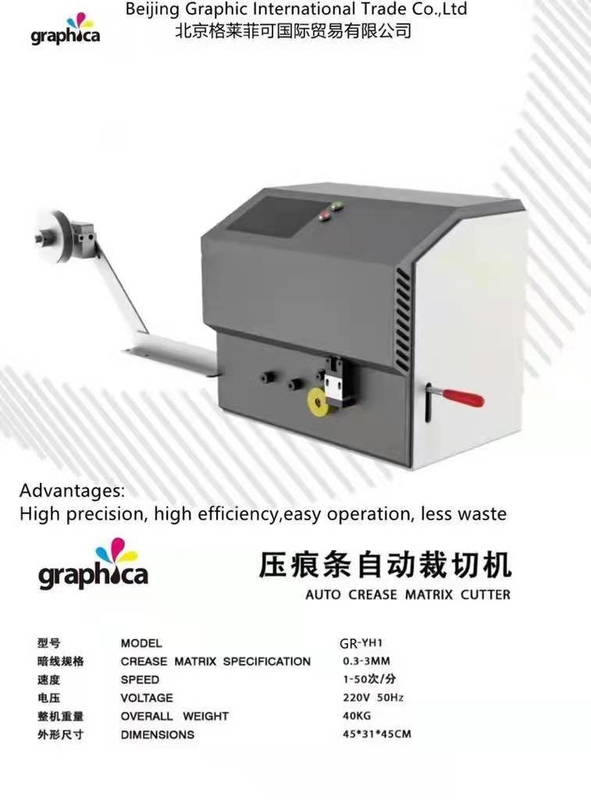

AUTO CREASE MATRIX CUTTER
Cutting Creasing Matrix Machine for Graphic Matrix Cutting and Creasing 1
Packing & Delivery
Auto Crease Matrix Cutter Packing:1 pcs/wooden box Machine Size :450*310*450mm G.W: 45KG N.W: 40KG Delivery:Within 3-9 days upon receive payment



Auto Crease Matrix Cutter
Touch Screen Instruction





Boot Page


Cutting Creasing Matrix Machine for Graphic Matrix Cutting and Creasing 2
Click to enter operating system
Main page of Operating system
Cutting Creasing Matrix Machine for Graphic Matrix Cutting and Creasing 3
1.Instructions of Standard mode
Cutting Creasing Matrix Machine for Graphic Matrix Cutting and Creasing 4
Cutting Creasing Matrix Machine for Graphic Matrix Cutting and Creasing 5
Start button,Start cutting after setting all data for crease matrix.
Cutting Creasing Matrix Machine for Graphic Matrix Cutting and Creasing 6
E-stop button, Emergency stop in the production process.
Cutting Creasing Matrix Machine for Graphic Matrix Cutting and Creasing 7
Search, search the files of crease matrix data which are saved, or create new files of crease matrix data(product name can only be save in English , numbers,”.”,”-“).
Cutting Creasing Matrix Machine for Graphic Matrix Cutting and Creasing 8
Save, save different data of crease matrix .
Cutting Creasing Matrix Machine for Graphic Matrix Cutting and Creasing 9
Recall, call out the saved data. Convenient for multiple times producing at different date.
Cutting Creasing Matrix Machine for Graphic Matrix Cutting and Creasing 10
Delete, delete the useless saved data.
Cutting Creasing Matrix Machine for Graphic Matrix Cutting and Creasing 11
Press this button , enter the menu below
Cutting Creasing Matrix Machine for Graphic Matrix Cutting and Creasing 12
Length ,for setting the length of crease matrix.

Quantity,for setting the quantities for crease matrix.

Adhesive strips reverse/Adhesive strips forward, adjusting the positions of crease matrix ,back and forward.

Cutter reverse/cutter forward,adjusting the positions of the cutter, up and down.

Cutter 1 rotation, reset the cutter to steady position.

2．Instructions of Simple mode

Press“Simple”to enter menu below.
Cutting Creasing Matrix Machine for Graphic Matrix Cutting and Creasing 13
Cutting Creasing Matrix Machine for Graphic Matrix Cutting and Creasing 5
Start button,Start cutting after setting all data for crease matrix.
Cutting Creasing Matrix Machine for Graphic Matrix Cutting and Creasing 6
E-stop button, Emergency stop in the production process.
Cutting Creasing Matrix Machine for Graphic Matrix Cutting and Creasing 16
set the length of crease matrix (mm) .
Cutting Creasing Matrix Machine for Graphic Matrix Cutting and Creasing 17
set the quantities for production.


Adhesive strips reverse/Adhesive strips forward, adjusting the positions of crease matrix ,back and forward.

Cutter reverse/cutter forward, adjusting the positions of the cutter, up and down.

Cutter 1 rotation, reset the cutter to steady position.

This mode is apply to simple cutting of creasing matrix.

Cutting Creasing Matrix Machine for Graphic Matrix Cutting and Creasing 18
Cutting Creasing Matrix Machine for Graphic Matrix Cutting and Creasing 19
Cutting Creasing Matrix Machine for Graphic Matrix Cutting and Creasing 20
Cutting Creasing Matrix Machine for Graphic Matrix Cutting and Creasing 21
Cutting Creasing Matrix Machine for Graphic Matrix Cutting and Creasing 22
Cutting Creasing Matrix Machine for Graphic Matrix Cutting and Creasing 23
Cutting Creasing Matrix Machine for Graphic Matrix Cutting and Creasing 24
Q1: Are you factory direct?
A1:Beijing Graphic Inte’l Trade company as a professional creasing matrix and paper cutting knife manufacturer was established in 2012, specialized in die cutting creasing matrix, paper cutting knife and paper drill bits and pneumatic waste stripper and other related products.
Our products are mainly exported to USA, Canada, Europe, South America, etc.Over 120 countries and area.

Q2:What’s your product ranges?
A2: Our main product is packaging material, main product are die cutting creasing matrix, paper cutting knives , paper drill bits, pneumatic waste stripper and so on.

Q3:Do you have a special price and service for wholesale?
A3: Beijing Graphic Inte’l Trade company is keeping search a long term business cooperation with our clients as a professional creasing matrix manufacturer.
we can OEM &ODM for our cilents, fully support and assist on service, to offer you the most competitive price with high quality product.

Q4: What payment methods can I use? And how secure is my payment?
A4: Beijing Graphic Inte’l Trade company accept your payment through Paypal, Bank Transfer,Western Union,etc.

Q5:How long does it take for my order to be shipped? And how long can I receive it?
A5:Generally, your order will be shipped within 3~7 working days after your payment received by us.
Beijing Graphic Inte’l Trade company devotes to be a fastest delivery led lights supplier.

Q6: How about the warranty?
A6: Beijing Graphic Inte’l Trade company welcome you to contact us at 24 hours per day, 7 days per week, your any question will be highly appreciated. hotline: 0086-10-87227832
Cutting Creasing Matrix Machine for Graphic Matrix Cutting and Creasing 25
