0.4mm Channel Height 1.5mm Channel Width Die Cutting Channel Plastic Creasing Matrix in Coil

Place of Origin:

Beijing, China

Brand Name:

Graphic

Model Number:

GRB0.4*1.5mmC

Request A Quote

0.4mm Channel Height 1.5mm Channel Width Die Cutting Channel Plastic Creasing Matrix in Coil

Product Details

HS NO.:

39169090

Base Color:

White

Weight:

2kg/coil

Punching Time:

10000-30000sheets/hour

Channel Height:

0.4mm

Channel Width:

1.5mm

Appliction:

For Cardboard & Corrugated Paper Box Die Cutting Making

Payment Terms:

Trade Assurance Order L/C D/A D/P T/T Western Union MoneyGram Name:

Name:

Die Cutting Channel Plastic Creasing Matrix In Coil

Payment & Shipping Terms

Minimum Order Quantity

Price

$1.00/meters 1-499 meters

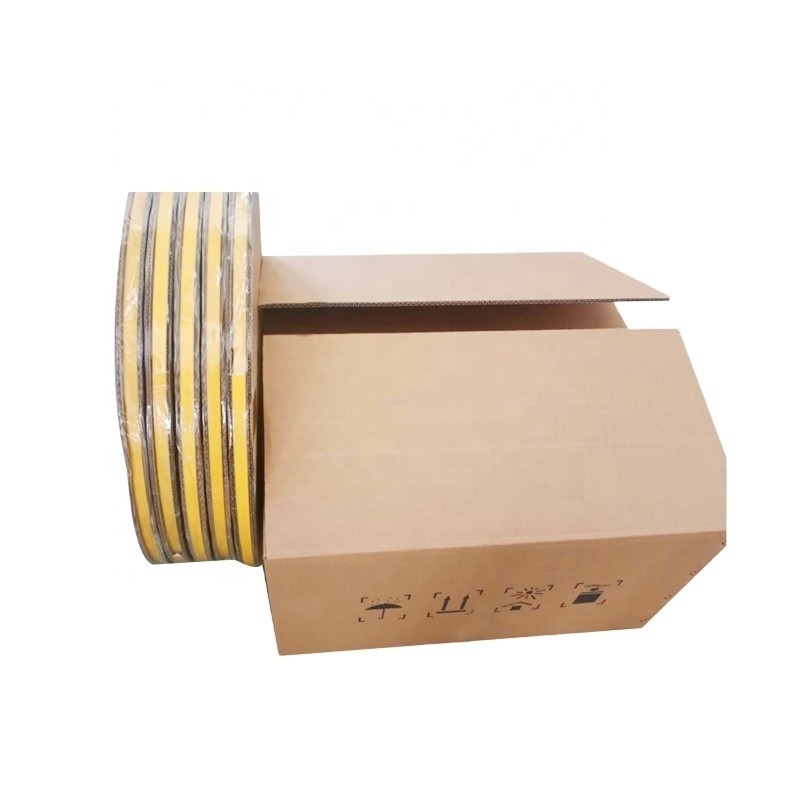

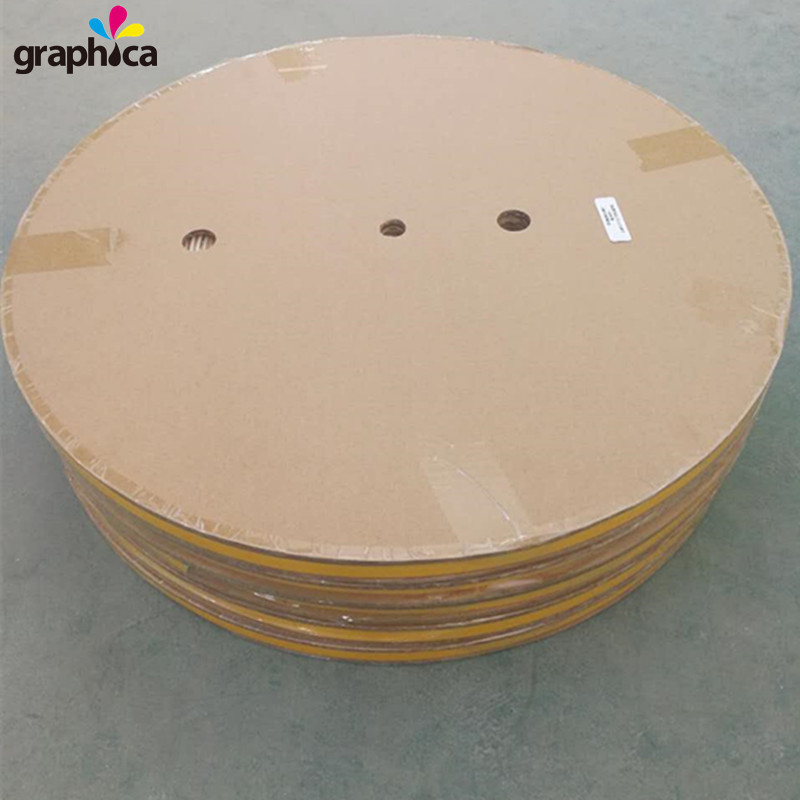

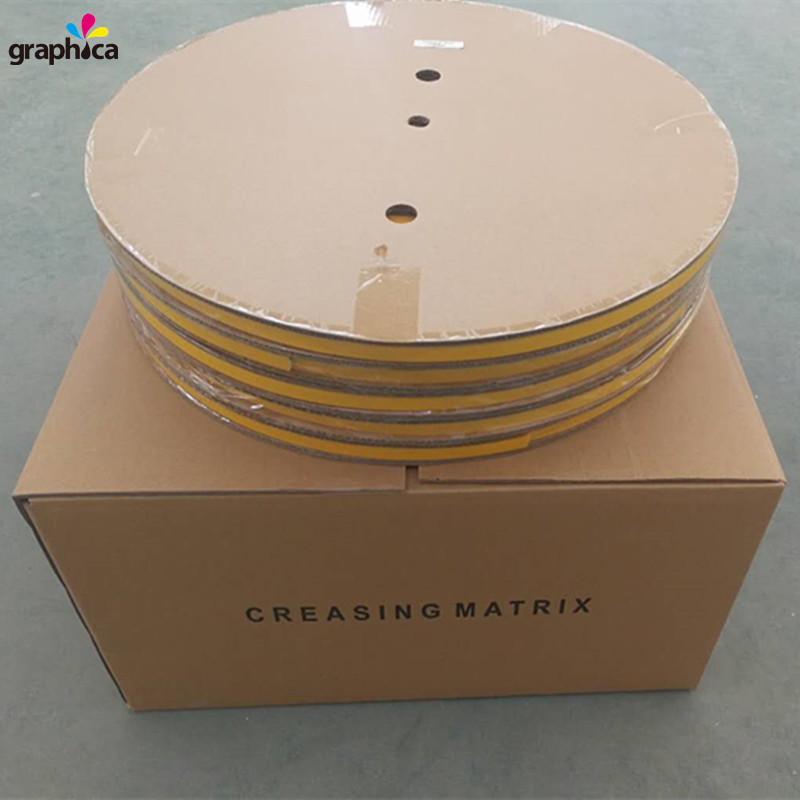

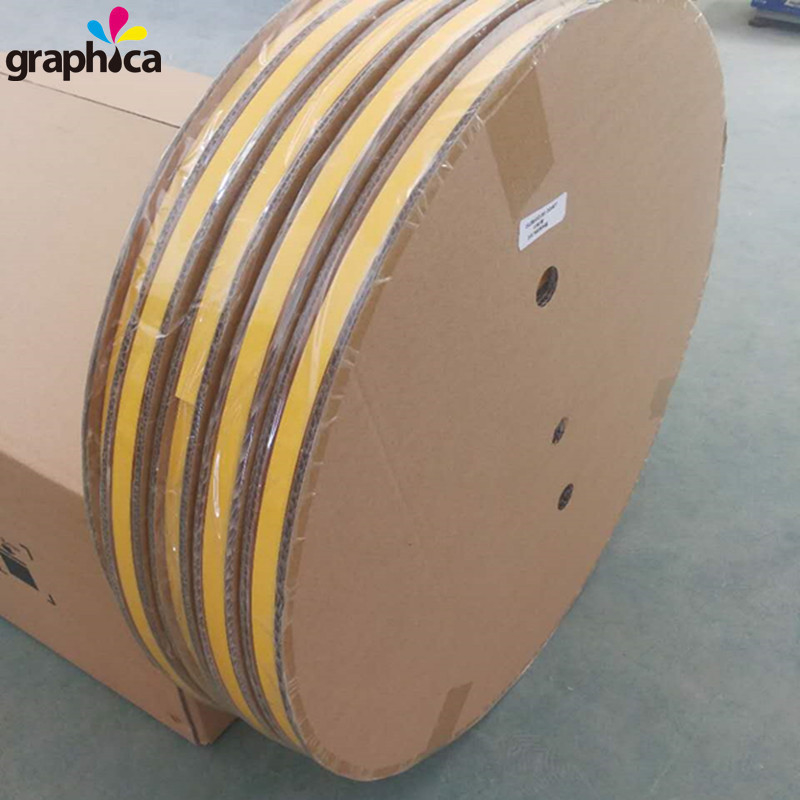

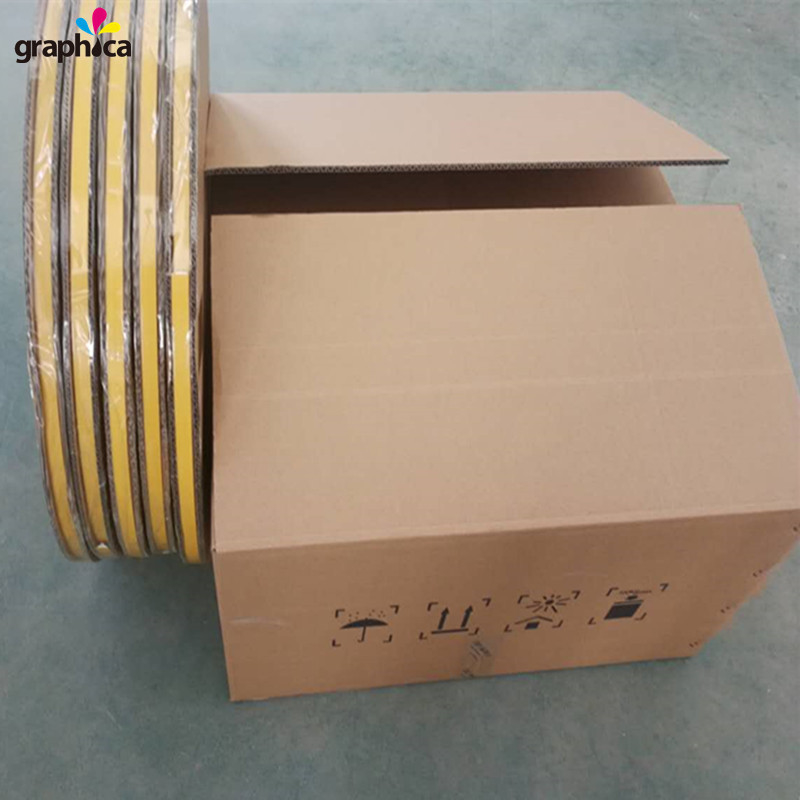

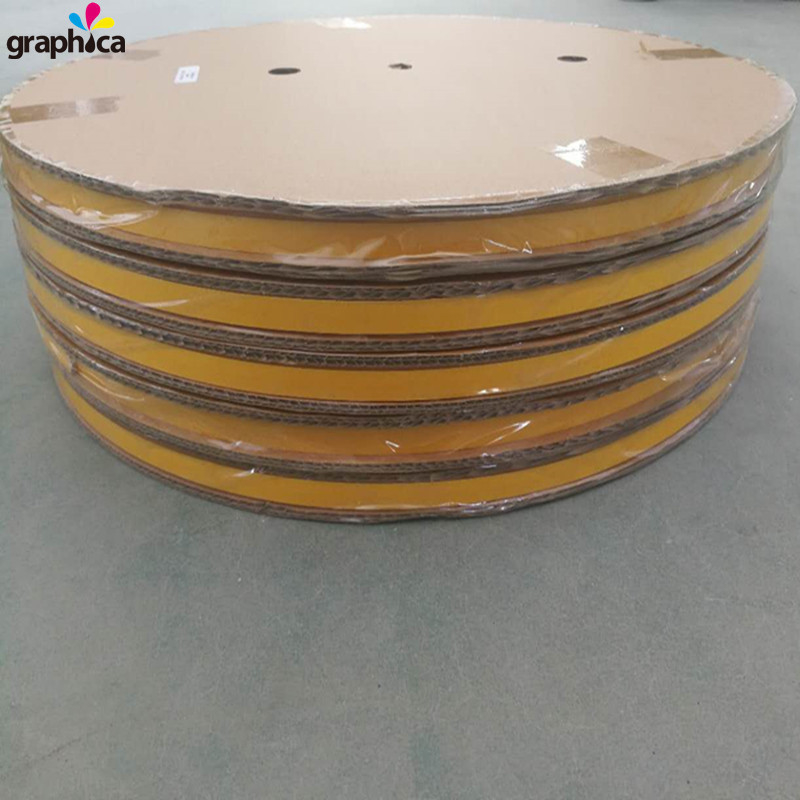

Packaging Details

Die cutting channel plastic creasing matrix in coil
Packing:50cm/roll,weight:1.95kg
Delivery:Within 2-7 days upon receive payment

Edge Protector Paper Creasing Tool Die Cutting Channel GRB0.4*0.8mmP Creasing Matrix

Get Best Price

CE Certified Super March Quick Shipping Creasing Matrix Cutting Machines with 0.4mm Channel Height

Get Best Price

Graphic Die Cutting Channel Automatic Creasing Matrix Cutter with Imported Finger Tape

Get Best Price

Punching Time 300000 Sheets/Hour Perforating Machine Paper Creasing Matrix for Die Cutting

Get Best Price

Contact Now

Product Description

Product Details

Different series for creasing matrix
Series	Plastic based Creasing Matrix	Pink Fiber- based(13mm wide base)	Resin- based(transparent)	Pressboard- based(black imported raw material)
Type	Standard/Narrow/Off center/Double	Standard / Narrow	Standard / Narrow	Standard/Narrow/
Material	PVC base with plastic shoulder	Fiber	Resin base	Pressboard base
Punching Time	10,000-30,000 times	10,000-30,000 times	10,000-30,000 times	50,000-80,000 times
Application	Developed for small and medium print runs	Developed for extremely durable print runs Packing 70cm/pc,50pcs/box,10boxes/carton	Developed for extremely durable print runs, especially for cigarette & cosmetic &pharmaceutical box making	Developed for medium and long print runs
Packing	70cm/pc,50pcs/box,10boxes/carton		70cm/pc,50pcs/box,10boxes/carton
Storage Period	6 months to 2 years			6 months to 2 years
Notes	Matrix in rolls is available upon demands			Matrix in rolls is available upon demands

Calculation Formula

Method to choose creasing matrix size for cardboard paper.

Size table ( subject to 23.8 mm die-cutting rules)

For instance: the thickness of the cardboard: 0.52mm; the thickness of creasing rules: 0.71mm, according to calculation formula:A=0.52≈0.5(mm); B=0.52 x 1.5 +0.71 = 1.49 ≈1.5(mm),so we should choose the size of 0.5 x 1.5.

Method to choose creasing matrix size for corrugated paper. Size table ( subject to 23.8 mm die-cutting rules)

Corrugated Paper	Thickness of corrugated paper after comprssion	Height of creasing rule	Options(thickness if creasing rule is 1.05mm)	Options(thickness of creasing rule is 1.42mm)
F-Flute	0.50mm	23.2mm	0.5*1.7	--
E-Flute	0.65mm	23.1mm	0.7*2.3	--
E-Flute	0.75mm	23mm	0.8*2.5	--
B-Flute	0.85mm	22.9mm	0.8*2.7	0.8*3.2
B-Flute	0.95mm	22.8mm	1.0*3.0	1.0*3.5
C-Flute	1.05mm	22.7mm	1.0*3.2	1.0*3.5
C-Flute	1.15mm	22.6mm	--	1.0*4.0

Plastic-based Size Table

H x W mm	H x W mm	H x W mm	H x W mm	H x W mm
GRB 0.3×0.8 C	GRB 0.5 x 1.0 C	GRB 0.6 x 3.2 C	GRB 1.0 x 3.0 C	GRZ0.3x0.8 C
GRB 0.3×1.0 C	GRB 0.5 x 1.2 C	GRB 0.6 x 3.5 C	GRB 1.0 x 3.2 C	GRZ0.3x1.0 C
GRB 0.3×1.2 C	GRB 0.5 x 1.3 C	GRB 0.7 x 2.1 C	GRB 1.0 x 3.5 C	GRZ0.3x1.2 C
GRB 0.3x1.3 C	GRB 0.5 x 1.4 C	GRB0.7x 2.3 C	GRB 1.0 x 4.0 C	GRZ0.3x1.3 C
GRB 0.3×1.4 C	GRB 0.5 x 1.5 C	GRB 0.7 x 2.5 C	GRB 1.0 x 4.5 C	GRZ0.4x0.8 C
GRB 0.3×1.5 C	GRB 0.5 x 1.7 C	GRB 0.7 x 2.7 C	GRB 1.0 x 5.0 C	GRZ0.4x1.0 C
GRB 0.4×1.0 C	GRB 0.5 x 1.9 C	GRB 0.8 x 2.5 C	GRB 1.2 x 4.0 C	GRZ0.4x1.2 C
GRB0.4x1.2 C	GRB0.6 x 1.7 C	GRB0.8x2.7 C	GRB 1.2 x 4.5 C	GRZ0.4x1.3 C
GRB0.4x1.3 C	GRB0.6 x 1.9 C	GRB0.8x3.2 C	GRB 1.2 x 5.0 C	GRZ0.4x1.4 C
GRB0.4x1.4 C	GRB0.6 x 2.3 C	GRB0.8x3.5 C	GRB 1.2 x 6.0 C	GRZ0.5x1.0 C
GRB0.4x1.5 C	GRB0.6 x2.5 C	GRB0.8x4.0 C	GRB 1.4 x 6.0 C	GRZ0.5x1.2 C
GRB0.4x1.6 C	GRB0.6 x 2.7 C	GRB0.8x5.0 C	GRB 1.4 x 7.0 C	GRZ0.5x1.3 C
GRZ0.5x1.4 C	GRZ0.5 x 1.5 C	GRZ0.5x1.6 C	GRZ 0.5 x 1.7 C	GRZ0.5x1.9 C

Remarks: the above blanks just for reference and the exact specification suitable for your job should be chosen according to your actual conditions and material thickness.

Features

1. Used more than 77 countries worldwide. World’s most advanced creasing matrix made from plastic, pressboard and pink fiber and resin for various die cutting jobs.

2. Accurate locator – ensures perfect registration.

3. Low profile chamfer – board flows freely over the matrix; board marking is reduced.

4. Finger lift adhesive tape – backing paper easily and quickly removed.

5. New and strong adhesive removes cleanly from the plate after use, will not move about during die cutting jobs.

6. Special sizes available to suit all board types, off-centers and multi-crease for close creasing rule

7. It is extremely durable and accurate and provides benefits in time and cost.

Material characteristics

1.Plastic (PVC) –easy to extrude & chamfer, good durability, cannot delaminate

2.Pressboard – expensive, easy to chamfer, stronger durability, can delaminate

3.Pink fibre – very resistant and durable, easy to chamfer, expensive

4.Pertinax – the most durable product available but only available in smaller thicknesses and not all sizes. Impossible to chamfer, can use sand paper to chamfer.

Packaging & Delivery

Package details
Selling Units	Single item
Single package size	71X10X4 cm	--	--	--
Single gross weight	1.300 kg	--	--	--
Package Type	High Quality （GRB0.5*1.4mm ）Plastic Creasing Matrix for Die Cutter	--	--	--
Packing	70cm/pc	50pcs/box	1.3kgs/box	10boxes/carton
Carton	73 x 23x 22cm(length x width x height)	50pcs/box	--	--
Delivery	Within 2-7 days upon receive payment	--	--	--
Lead Time	Quantity(Boxes)	1 - 500	>500	--
	Est. Time(days)	7	To be negotiated	--
