Name: 2.8kg Semi-Automatic Graphic Pneumatic Nick Grinder for Smooth Operation and Results
Brand: Graphic
SKU: Graphic-Nick
Price: 350.00 USD
Availability: InStock
Rating: 4.9 (103 reviews)

Home > products > Steel Rule Bender Machine >

2.8kg Semi-Automatic Graphic Pneumatic Nick Grinder for Smooth Operation and Results

Place of Origin:

Beijing, China

Brand Name:

Graphic

Model Number:

Graphic-Nick

Request A Quote

2.8kg Semi-Automatic Graphic Pneumatic Nick Grinder for Smooth Operation and Results

Product Details

Name::

Pneumatic Nick Grinder

Color:

Blue

Dimension(L*W*H)::

200*180*100mm

Weight::

2.8kg

Type::

Air Pump

No-Load Speed::

10000rpm, 10000RPM

Automatic Grade::

Semi-Automatic

Average Air Consumption::

4CFM

Payment Terms::

Tade Assurance Order L/C D/A D/P T/T Western Union

Application::

Grinding Nick In Solid Corrugated Board

Payment & Shipping Terms

Minimum Order Quantity

Price

$350.00/boxes 1-1 boxes

Graphic Beijing Manual Die Cutting Machine for Creasing Matrix 0.4 Cutter Lightweight

Get Best Price

Industrial Grade Snipping Die Cutter Creasing Matrix 0.4 Scissors for Graphic Beijing

Get Best Price

Super March Manual Creasing Matrix Cutter for Die Cutter Laser Head None DWG Format

Get Best Price

Creasing Matrix Cutter with 16cm Height and Manual Functionality Design

Get Best Price

Contact Now

Product Description

Company Profile

Pneumatic nick grinder

developed especially for grinding nicks in cutting dies. Pneumatic drive for high performance.

The damaging of the rubber during grinding is prevented, performance of the diecutter is optimized.

simplified positioning for setting the nicks

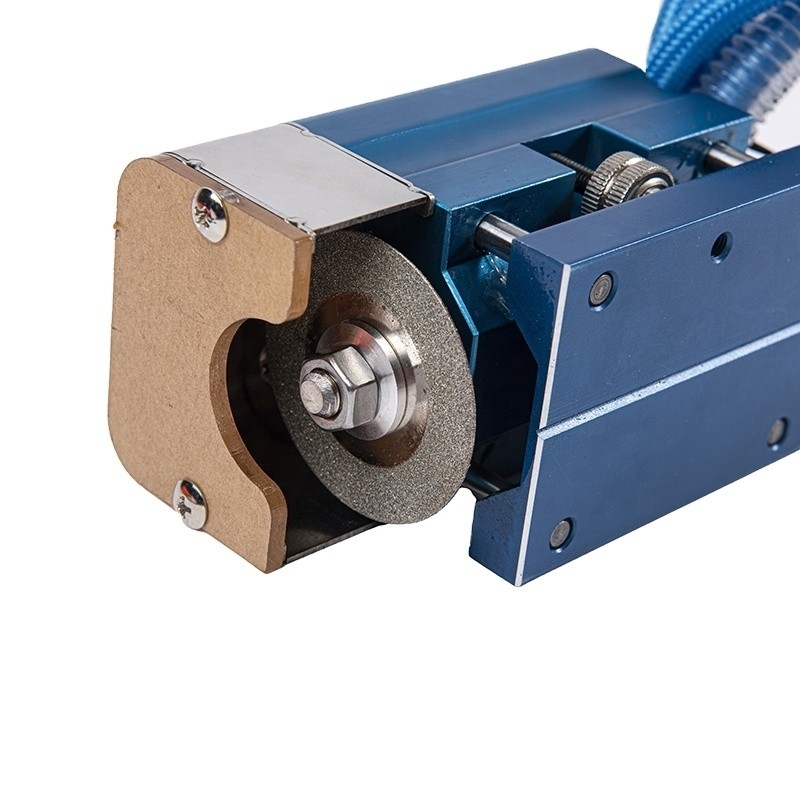

Available grinding wheel size: 50x8mm or 50x10mm

Grinding Wheel Thickness: 0.2mm,0.3mm,0.4mm,0.5mm,0.6mm,0.7mm,0.8mm,0.9mm,1.0mm,1.2mm,1.5mm,2.0mm,

Product Parameter

Average Air Consumption	4CFM
Maximum Torque	Adjustable
No-Load Speed	35000RPM

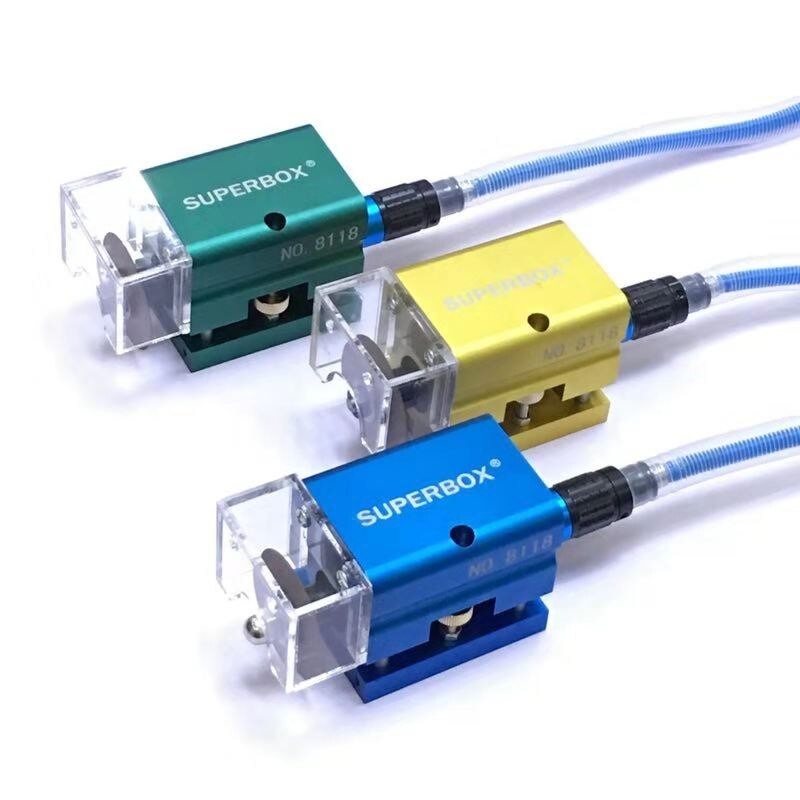

Color	Yellow/Blue/Green
Automatic Grade	Semi-Automatic

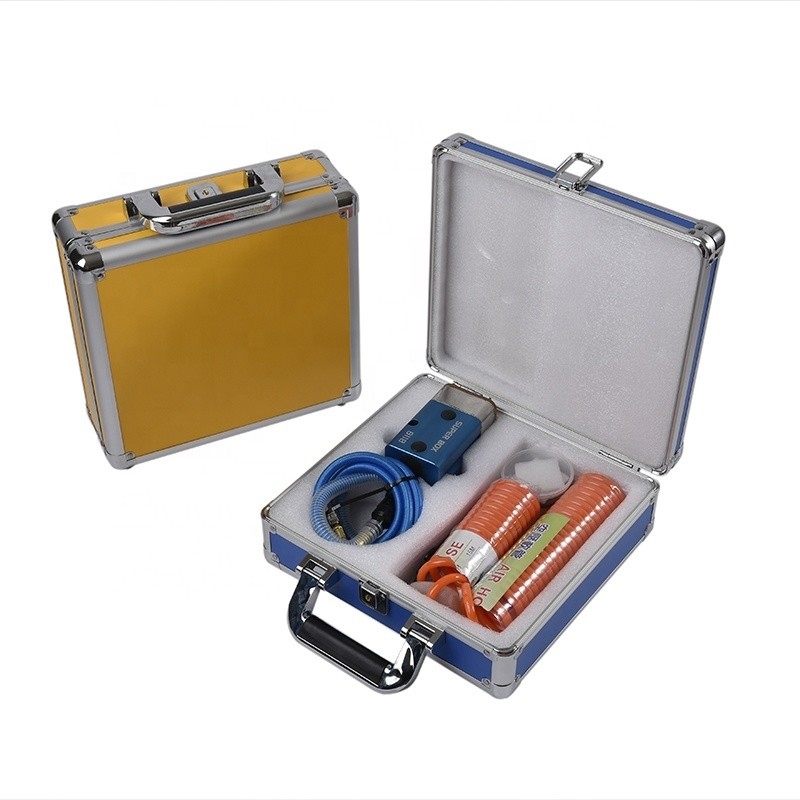

Packing	1set/box
Net Weight	0.8kg
Usage	Die cutting Nick Grinding
Dimension	1806068mm
Payment Terms	Trade Assurance Order T/T Western Union Money Gram
Inlet pipe diameter	8*5mm
Working pressure Mpa	0.6-0.8
Air pipe length	1.2+6M

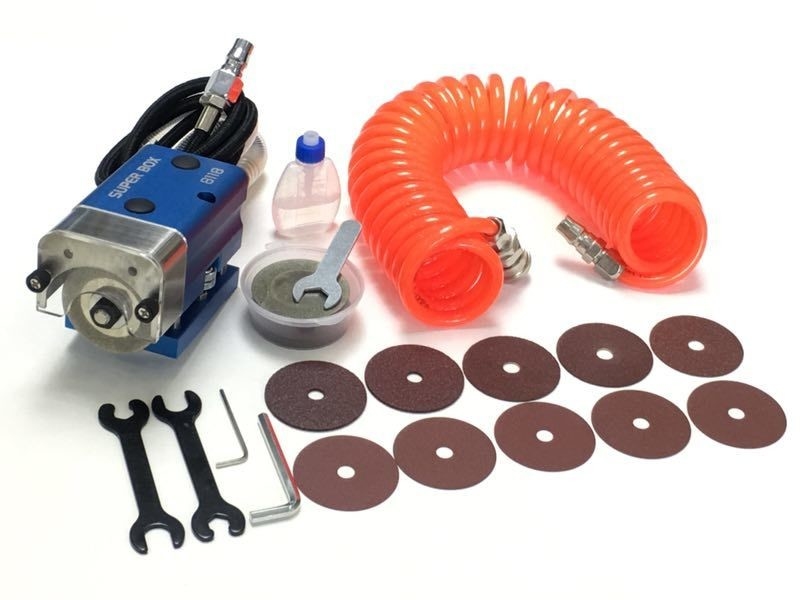

Delivery tools	4pcs
Free grinding wheel per set	10pcs
Warranty service	6 months

Advantage:

1. Versatile pneumatic powered nicking grinder produce clean, perpendicular nicks at consistent&adjustable depths.

2.Operating with less noise and vibration

3.Steady position of the devices on die-boards due to 4 removable pins below the base.

4. Nicks width from 0.2mm to 2.0mm by using different grinding distance thickness.

Manual Instructions

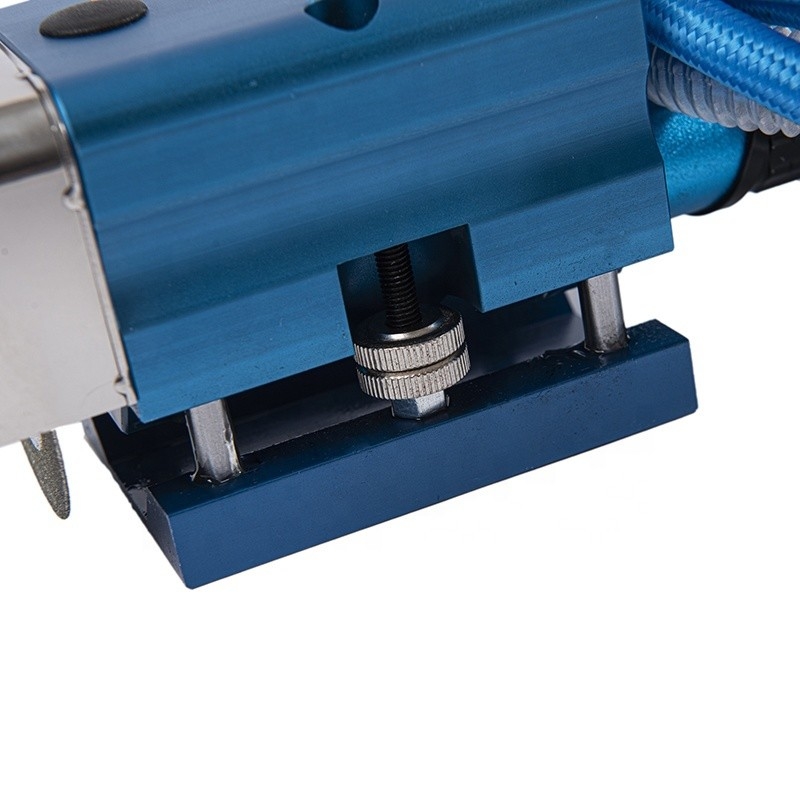

1.Check the air source, air pressure stable or not 2.Check the machine screws etc. 3.Change the grinding wheel according to needs, adjust the depth valve(If not use high precision position, pls lock the depth valve to the rock bottom position, which will do the nick grinding jobs according to the pressure power) 4.Wear gloves, protective glass, masks 5.Connect to air source( suggest to hang up the air hose) 6.Pls drop 3 drops pneumatic oil to the air inlet, plug in the air hose. Rotate to right to open the grinder. Then slowly idle for a few seconds, rotate to left to close 7.Put the wooden die cutting board smoothly on the table(suggest not to use sponge rubber before nick grinding, as resistance increases) 8.Rotate to right to open the grinder, increase the speed. Use thumb and first finger to hold the machine when the rotation speed gets stable. Then put the machine in the front side of the steel rules, move it to the grinding position(use wheels to adjust the position) and gently press the machine to start nicking. Move stably in turn. Pay attention that must gently press and handle 9.After finish the nicking job, rotate to left to close. Unplug the air hose and use 3 drops pneumatic oil to the air inlet, then plug to the air hose and open the grinder to idling for a few seconds. After that close the air source, clean the machine body and keep in proper position

Beijing Graphic International Trade Co., Ltd is a joint venture created by Changzhou Machinery Blade Co.,ltd and ChangZhou Xinyitong Electrical & Mechanical Technology Co.,ltd, who is one of the world's leading and professional supplier of printing equipments and consumables in China, providing its customers with Graphic Arts Consumables, Machines and Spare Parts for diversified jobs. Since its establishment in 2008, Beijing Graphic International Trade Co., Ltd is firmly in accordance with the Business Spirit"Excellent Quality, First-class Service, Honest Commitment"and remain committed to heartfelt Management Principles"Customers Supreme, Reputation First", meanwhile, we undertake"Action Priority, Efficiency Persistence"as our Enterprise Criterion. We are always striving for new ideas and innovative solutions. Beijing Graphic Trade stands for efficient processing ,printing and die cutting systems for most versatile applications with highest customer benefits. Here,Beijing Graphic International Trade Co., Ltd works on things that matter. The best people and the best technologies are taking on the toughest challenges. You will find exactly the right solution for every application and material.

Q1: Are you factory direct?
A1:Beijing Graphic Inte’l Trade company as a professional creasing matrix and paper cutting knife manufacturer was established in
2012, specialized in die cutting creasing matrix, paper cutting knife and paper drill bits and pneumatic waste stripper and other
related products.
Our products are mainly exported to USA, Canada, Europe, South America, etc.Over 120 countries and area.

Q2:What’s your product ranges?
A2: Our main product is packaging material, main product are die cutting creasing matrix, paper cutting knives , paper drill bits,
pneumatic waste stripper and so on.

Q3:Do you have a special price and service for wholesale?
A3: Beijing Graphic Inte’l Trade company is keeping search a long term business cooperation with our clients as a professional
creasing matrix manufacturer. we can OEM &ODM for our cilents, fully support and assist on service, to offer you the most
competitive price with high quality product.

Q4: What payment methods can I use? And how secure is my payment?
A4: Beijing Graphic Inte’l Trade company accept your payment through Paypal, Bank Transfer,Western Union,etc.

Q5:How long does it take for my order to be shipped? And how long can I receive it?
A5:Generally, your order will be shipped within 3~7 working days after your payment received by us. Beijing Graphic Inte’l Trade
company devotes to be a fastest delivery led lights supplier.

Q6: How about the warranty?
A6: Beijing Graphic Inte’l Trade company welcome you to contact us at 24 hours per day, 7 days per week, your any question will be
highly appreciated. hotline: 0086-10-87227832
