Name: White PVC Creasing Matrix With Imported Finger Tape And Glue For Graphic Beijing 2021
Brand: Graphic
SKU: GRB0.6*1.6mmC
Price: 22.00 USD
Availability: InStock
Rating: 4.5 (172 reviews)

Home > products > CITO Creasing Matrix >

White PVC Creasing Matrix With Imported Finger Tape And Glue For Graphic Beijing 2021

Place of Origin:

Beijing, China

Brand Name:

Graphic

Certification:

Model Number:

GRB0.6*1.6mmC

Request A Quote

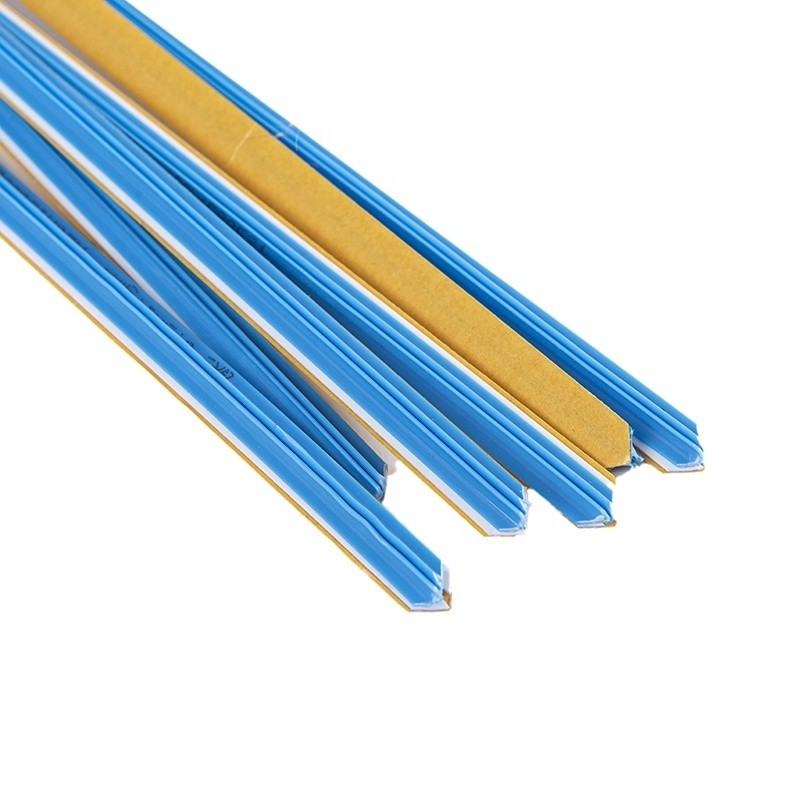

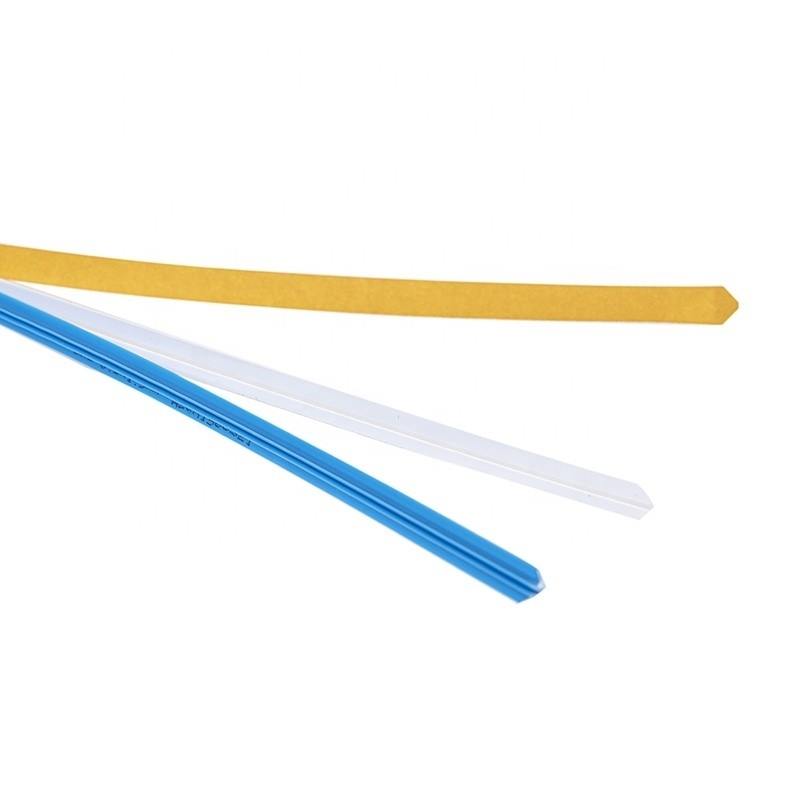

White PVC Creasing Matrix With Imported Finger Tape And Glue For Graphic Beijing 2021

Product Details

Material:

PVC, Plastic

Industrial Use:

Food

Base Color:

White

Finger Tape:

Imported Finger Tape And Glue

Channel Height:

0.6mm

Channel Width:

1.6mm

Punching Time:

10000-30000sheets/hour

Base Width:

12mm

Application:

For Cardboard & Corrugated Paper Box Die Cutting Making

Name:

PVC Creasing Matrix With Imported Finger Tape And Glue

Payment & Shipping Terms

Minimum Order Quantity

Price

$22.00/boxes 1-499 boxes

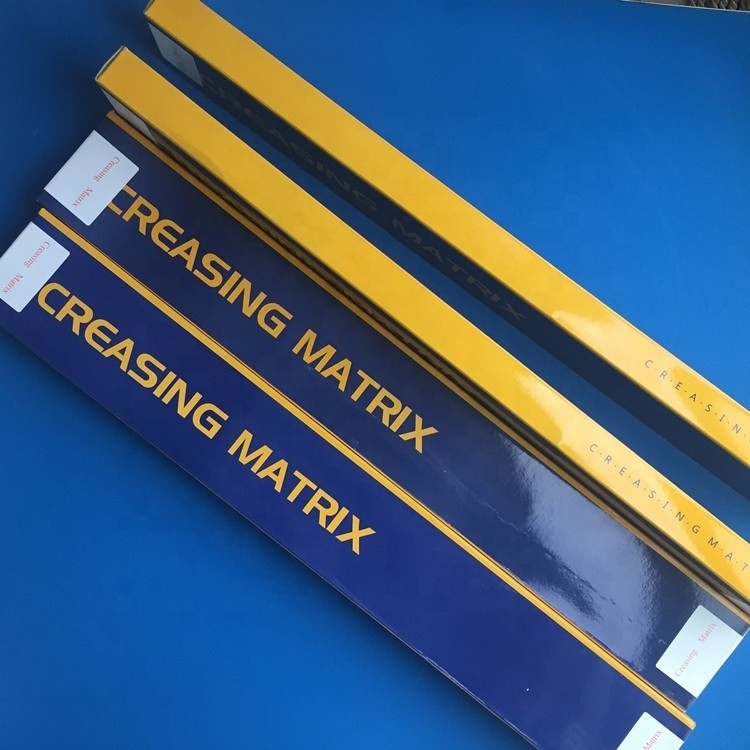

Packaging Details

PVC Creasing Matrix With Imported Finger Tape And Glue
Packing:70cm/pc
50pcs/box
1.3kgs/box,
10boxes/carton

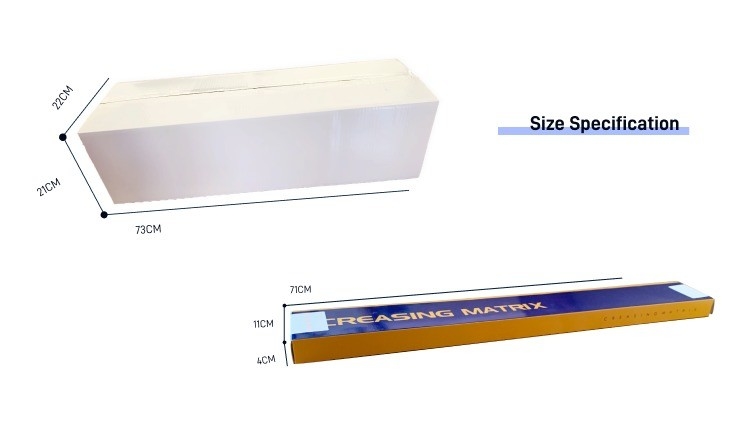

Carton: 73 x 23x 22cm(length x width x height),
500-70

Edge Protector Paper Creasing Tool Die Cutting Channel GRB0.4*0.8mmP Creasing Matrix

Get Best Price

CE Certified Super March Quick Shipping Creasing Matrix Cutting Machines with 0.4mm Channel Height

Get Best Price

Graphic Die Cutting Channel Automatic Creasing Matrix Cutter with Imported Finger Tape

Get Best Price

Punching Time 300000 Sheets/Hour Perforating Machine Paper Creasing Matrix for Die Cutting

Get Best Price

Contact Now

Product Description

Series	Plastic based Creasing Matrix
Type	Standard/Narrow/Off-center/Double
Material	PVC base with plastic shoulder
Punching Time	10,000-30,000 times
Application	Developed for small and medium print runs
Packing	70cm/pc,50pcs/box,10boxes/carton
Storage Period	2 years
Quality Guarantee	1 year
Notes	Matrix in rolls is available upon demands

Series	Pressboard- based(black imported raw material)
Type	Standard/Narrow
Material	Pressboard base
Punching Time	50,000-80,000 times
Application	Developed for medium and long print runs
Packing	70cm/pc,50pcs/box,10boxes/carton
Storage Period	6 months to 2 years
Notes	Matrix in rolls is available upon demands

Series	Pink Fiber- based(13mm wide base)
Type	Standard / Narrow
Material	Fiber
Punching Time	100,000-300,000 times
Application	Developed for extremely durable print runs
Packing	70cm/pc,50pcs/box,10boxes/carton

Series	Resin- based(transparent)
Type	Standard / Narrow
Material	Resin base
Punching Time	100,000-300,000 times
Application	Developed for extremely durable print runs, especially for cigarette & cosmetic &pharmaceutical box making.
Packing	70cm/pc,50pcs/box,10boxes/carton

1. Measure the length of the creasing rule

2. Mark the measurement and cut the matrix
3. Mount the cutting piece into the creasing rule with locator
4.Remove all of the backing tapes

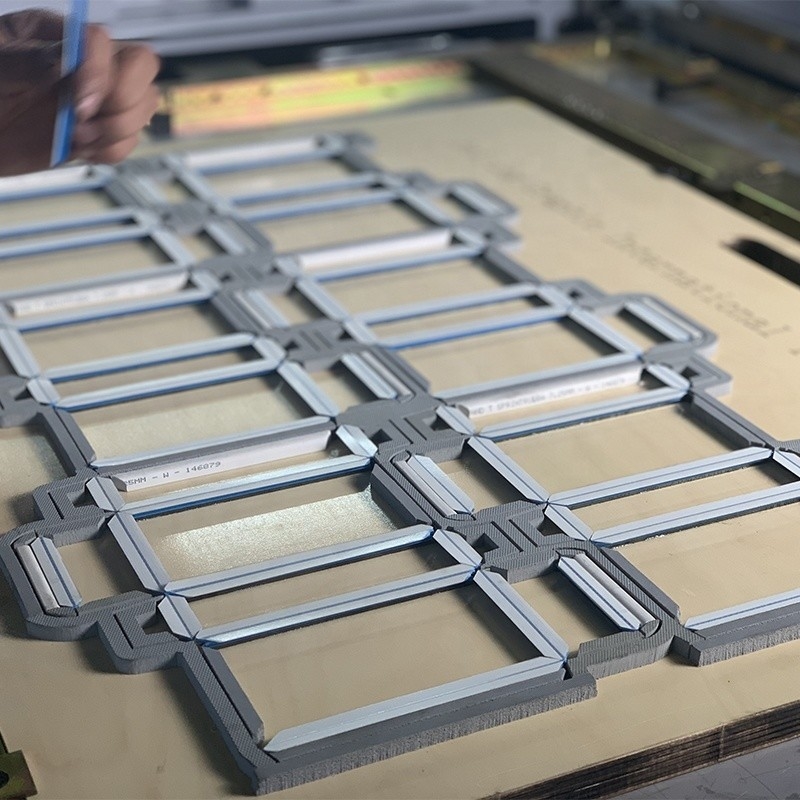

5. Transfer the matrix to the die cutting steel plate
6.Remove all of the locators

7. Miter the sharp angle

Plastic-based Size Table

H x W mm	H x W mm	H x W mm	H x W mm	H x W mm
GRB 0.3×0.8 P	GRB 0.5 x 1.2 P	GRB 0.6 x 1.7 P	GRB 1.0 x 3.0 P	GRB 1.2 x 4.0 P
GRB 0.3×1.0 P	GRB 0.5 x 1.3 P	GRB 0.6 x 1.9 P	GRB 1.0 x 3.2 P	GRB 1.2 x 4.5 P
GRB 0.3×1.2 P	GRB 0.5 x 1.4 P	GRB 0.7 x 2.1 P	GRB 1.0 x 3.5 P	GRB 1.2 x 5.0 P
GRB 0.4×1.0 P	GRB 0.5 x 1.5 P	GRB 0.7 x 2.3 P	GRB 1.0 x 4.0 P	GRB 1.2 x 6.0 P
GRB 0.4×1.2 P	GRB 0.5 x 1.6 P	GRB 0.7 x 2.5 P	GRB 1.0 x 4.5 P	GRB 1.4 x 6.0 P
GRB 0.4×1.3 P	GRB 0.6 x 1.6 P	GRB 0.8 x 2.7 P	GRB 1.0 x 5.0 P	GRB 1.4 x 7.0 P

Calculation Formula

Method to choose creasing matrix size for cardboard paper. Size table ( subject to 23.8 mm die-cutting rules)

For instance: the thickness of the cardboard: 0.52mm; the thickness of creasing rules: 0.71mm, according to calculation formula: A=0.52≈0.5(mm); B=0.52 x 1.5 +0.71 = 1.49 ≈1.5(mm),so we should choose the size of 0.5 x 1.5.

Method to choose creasing matrix size for corrugated paper. Size table ( subject to 23.8 mm die-cutting rules)

Remarks: the above blanks just for reference and the exact specification suitable for your job should be chosen according to your actual conditions and material thickness.

Featrues:

1. Used more than 77 countries worldwide. World’s most advanced creasing matrix made from plastic, pressboard and pink fiber and resin for various die cutting jobs.
2. Accurate locator – ensures perfect registration
3. Low profile chamfer – board flows freely over the matrix; board marking is reduced
4. Finger lift adhesive tape – backing paper easily and quickly removed
5. New and strong adhesive removes cleanly from the plate after use, will not move about during die cutting jobs
6. Special sizes available to suit all board types, off-centers and multi-crease for close creasing rule
7. It is extremely durable and accurate and provides benefits in time and cost.

Material characteristics

1.Plastic (PVC) –easy to extrude & chamfer, good durability, cannot delaminate

2.Pressboard – expensive, easy to chamfer, stronger durability, can delaminate

3.Pink fibre – very resistant and durable, easy to chamfer, expensive

4.Pertinax – the most durable product available but only available in smaller thicknesses and not all sizes. Impossible to chamfer, can use sand paper to chamfer.

Finished Box after Die Cutting
