Channel Height 0.8mm Plastic Creasing Matrix Cutting Machine GRB0.8*2.5mm for Die Cutter

Channel Height 0.8mm Plastic Creasing Matrix Cutting Machine GRB0.8*2.5mm for Die Cutter

Place of Origin:

Beijing, China

Brand Name:

Graphic

Model Number:

GRB0.4*1.5mm

Contact Us
Request A Quote
Channel Height 0.8mm Plastic Creasing Matrix Cutting Machine GRB0.8*2.5mm for Die Cutter Channel Height 0.8mm Plastic Creasing Matrix Cutting Machine GRB0.8*2.5mm for Die Cutter Channel Height 0.8mm Plastic Creasing Matrix Cutting Machine GRB0.8*2.5mm for Die Cutter Channel Height 0.8mm Plastic Creasing Matrix Cutting Machine GRB0.8*2.5mm for Die Cutter Channel Height 0.8mm Plastic Creasing Matrix Cutting Machine GRB0.8*2.5mm for Die Cutter Channel Height 0.8mm Plastic Creasing Matrix Cutting Machine GRB0.8*2.5mm for Die Cutter
Product Details
Material:
Plastic
Channel Height:
0.8mm
Channel Width:
2.3mm
Punching Time:
10000-30000sheets/hour
Base Color:
White
Application:
For Cardboard & Corrugated Paper Cutting Making
Finger Tape:
Imported Finger Tape And Glue
Payment Terms:
Trade Assurance Order T/T Western Union MoneyGram
Name:
High Quality GRB0.4*1.5mm Plastic Creasing Matrix For Die Cutter
Package:
70cm/pc,50pcs/box,10boxes/carton
Payment & Shipping Terms
Minimum Order Quantity
1
Price
$17.00/boxes 500-999 boxes
Packaging Details
High Quality GRB0.5*1.4mm Plastic Creasing Matrix for Die Cutter
Packing:70cm/pc
50pcs/box
1.3kgs/box,
10boxes/carton
Carton: 73 x 23x 22cm(length x width x height)
RELATED PRODUCTS
Good price Edge Protector Paper Creasing Tool Die Cutting Channel GRB0.4*0.8mmP Creasing Matrix online

Edge Protector Paper Creasing Tool Die Cutting Channel GRB0.4*0.8mmP Creasing Matrix

Get Best Price
Good price CE Certified Super March Quick Shipping Creasing Matrix Cutting Machines with 0.4mm Channel Height online

CE Certified Super March Quick Shipping Creasing Matrix Cutting Machines with 0.4mm Channel Height

Get Best Price
Good price Graphic Die Cutting Channel Automatic Creasing Matrix Cutter with Imported Finger Tape online

Graphic Die Cutting Channel Automatic Creasing Matrix Cutter with Imported Finger Tape

Get Best Price
Good price Punching Time 300000 Sheets/Hour Perforating Machine Paper Creasing Matrix for Die Cutting online

Punching Time 300000 Sheets/Hour Perforating Machine Paper Creasing Matrix for Die Cutting

Get Best Price
Contact Us
Contact Now
Product Description
Channel Height 0.8mm Plastic Creasing Matrix Cutting Machine GRB0.8*2.5mm for Die Cutter 0
Channel Height 0.8mm Plastic Creasing Matrix Cutting Machine GRB0.8*2.5mm for Die Cutter 1

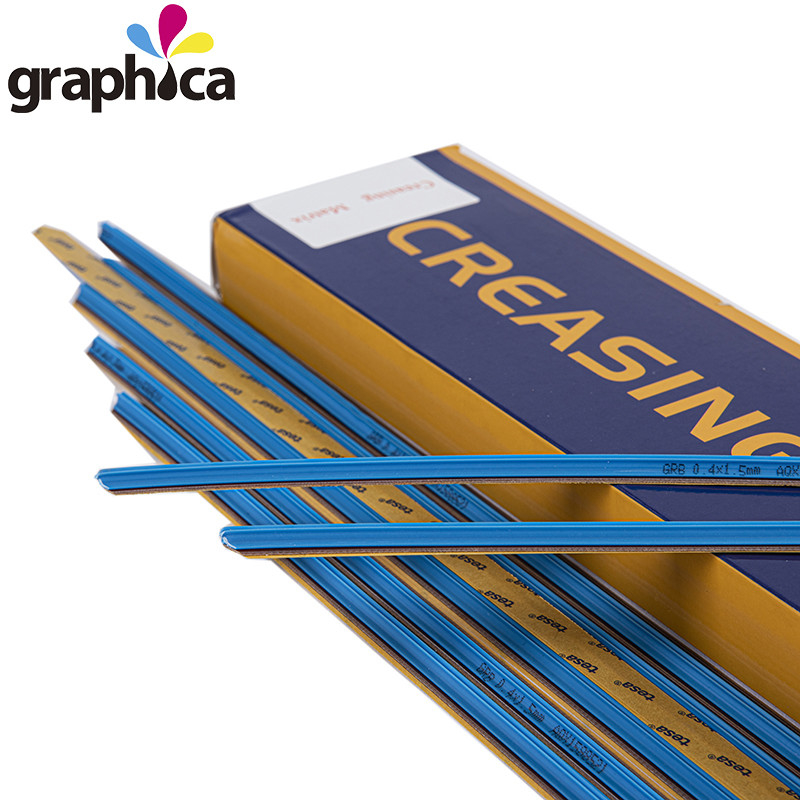

Series
Plastic based Creasing Matrix
Type
Standard/Narrow/Off-center/Double
Material
PVC base with plastic shoulder
Punching Time
10,000-30,000 times
Application
Developed for small and medium print runs
Packing
70cm/pc,50pcs/box,10boxes/carton
Storage Period
 2 years

Quality Guarantee
1 year
Notes
Matrix in rolls is available upon demands
Channel Height 0.8mm Plastic Creasing Matrix Cutting Machine GRB0.8*2.5mm for Die Cutter 2

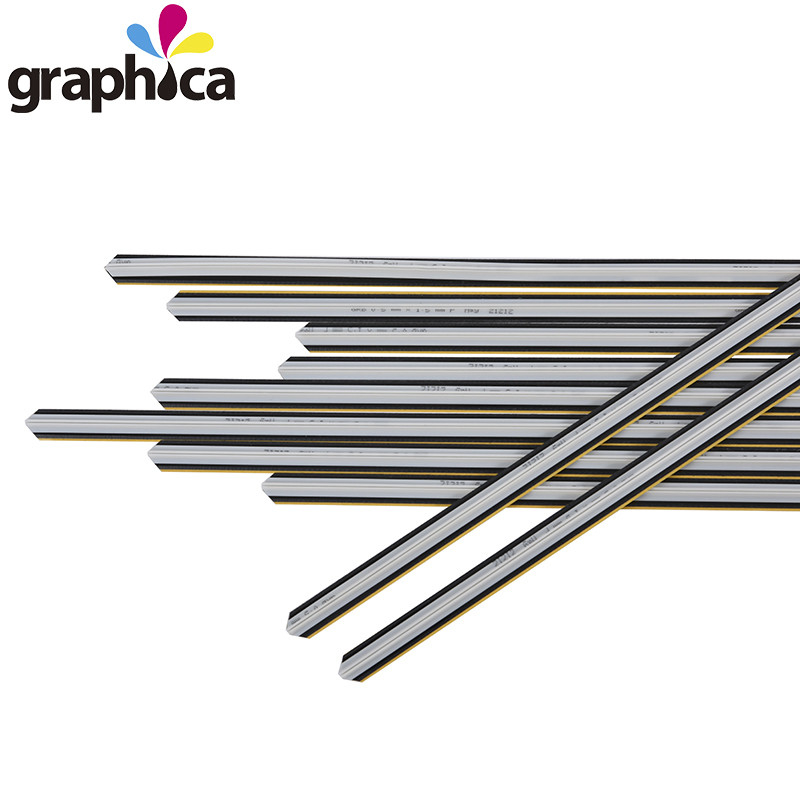

Series
Pressboard- based(black imported raw material)
Type
Standard/Narrow
Material
Pressboard base
Punching Time
50,000-80,000 times
Application
Developed for medium and long print runs
Packing
70cm/pc,50pcs/box,10boxes/carton
Storage Period
6 months to 2 years
Notes
Matrix in rolls is available upon demands
Channel Height 0.8mm Plastic Creasing Matrix Cutting Machine GRB0.8*2.5mm for Die Cutter 3

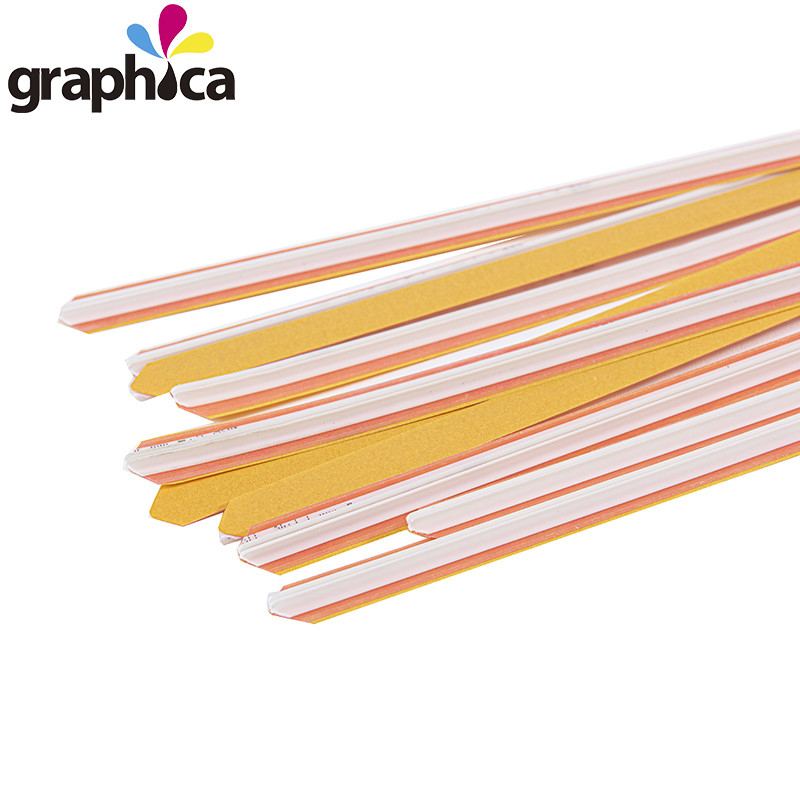

Series
Pink Fiber- based(13mm wide base)
Type
Standard / Narrow
Material
Fiber
Punching Time
100,000-300,000 times
Application
Developed for extremely durable print runs
Packing
70cm/pc,50pcs/box,10boxes/carton
Channel Height 0.8mm Plastic Creasing Matrix Cutting Machine GRB0.8*2.5mm for Die Cutter 4
Series
Resin- based(transparent)
Type
Standard / Narrow
Material
Resin base
Punching Time
100,000-300,000 times
Application
Developed for extremely durable print runs, especially for cigarette & cosmetic &pharmaceutical box making.
Packing
70cm/pc,50pcs/box,10boxes/carton
Channel Height 0.8mm Plastic Creasing Matrix Cutting Machine GRB0.8*2.5mm for Die Cutter 5

Featrues:

1. Used more than 77 countries worldwide. World’s most advanced creasing matrix made from plastic, pressboard and pink fiber and resin for various die cutting jobs.
2. Accurate locator – ensures perfect registration
3. Low profile chamfer – board flows freely over the matrix; board marking is reduced
4. Finger lift adhesive tape – backing paper easily and quickly removed
5. New and strong adhesive removes cleanly from the plate after use, will not move about during die cutting jobs
6. Special sizes available to suit all board types, off-centers and multi-crease for close creasing rule
7. It is extremely durable and accurate and provides benefits in time and cost.

Material characteristics

1.Plastic (PVC) –easy to extrude & chamfer, good durability, cannot delaminate

2.Pressboard – expensive, easy to chamfer, stronger durability, can delaminate

3.Pink fibre – very resistant and durable, easy to chamfer, expensive

4.Pertinax – the most durable product available but only available in smaller thicknesses and not all sizes. Impossible to chamfer, can use sand paper to chamfer.
Channel Height 0.8mm Plastic Creasing Matrix Cutting Machine GRB0.8*2.5mm for Die Cutter 6
Channel Height 0.8mm Plastic Creasing Matrix Cutting Machine GRB0.8*2.5mm for Die Cutter 7

1. Measure the length of the creasing rule
2. Mark the measurement and cut the matrix
3. Mount the cutting piece into the creasing rule with locator
4.Remove all of the backing tapes

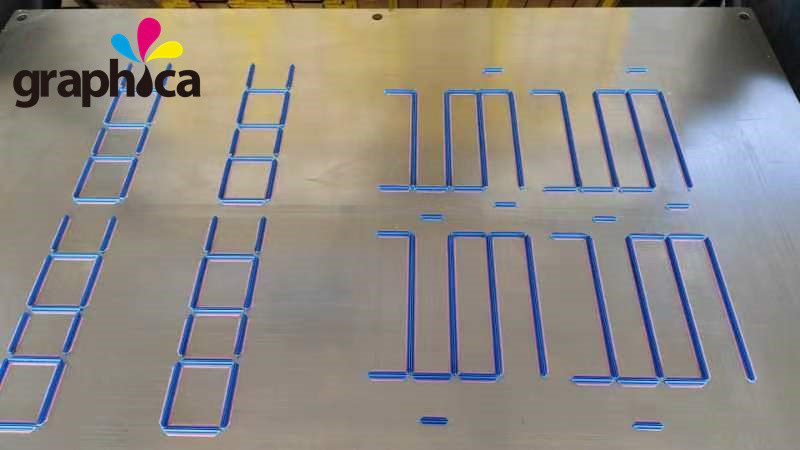

5. Transfer the matrix to the die cutting steel plate
6.Remove all of the locators
7. Miter the sharp angle
Channel Height 0.8mm Plastic Creasing Matrix Cutting Machine GRB0.8*2.5mm for Die Cutter 8
Channel Height 0.8mm Plastic Creasing Matrix Cutting Machine GRB0.8*2.5mm for Die Cutter 9
Channel Height 0.8mm Plastic Creasing Matrix Cutting Machine GRB0.8*2.5mm for Die Cutter 10
Channel Height 0.8mm Plastic Creasing Matrix Cutting Machine GRB0.8*2.5mm for Die Cutter 11
Channel Height 0.8mm Plastic Creasing Matrix Cutting Machine GRB0.8*2.5mm for Die Cutter 12
Channel Height 0.8mm Plastic Creasing Matrix Cutting Machine GRB0.8*2.5mm for Die Cutter 13
Channel Height 0.8mm Plastic Creasing Matrix Cutting Machine GRB0.8*2.5mm for Die Cutter 14
Channel Height 0.8mm Plastic Creasing Matrix Cutting Machine GRB0.8*2.5mm for Die Cutter 15
Plastic-based Size Table
H x W mm
H x W mm
H x W mm
H x W mm
H x W mm
GRB 0.3×0.8 P
GRB 0.5 x 1.2 P
GRB 0.6 x 1.7 P
GRB 1.0 x 3.0 P
GRB 1.2 x 4.0 P
GRB 0.3×1.0 P
GRB 0.5 x 1.3 P
GRB 0.6 x 1.9 P
GRB 1.0 x 3.2 P
GRB 1.2 x 4.5 P
GRB 0.3×1.2 P
GRB 0.5 x 1.4 P
GRB 0.7 x 2.1 P
GRB 1.0 x 3.5 P
GRB 1.2 x 5.0 P
GRB 0.4×1.0 P
GRB 0.5 x 1.5 P
GRB 0.7 x 2.3 P
GRB 1.0 x 4.0 P
GRB 1.2 x 6.0 P
GRB 0.4×1.2 P
GRB 0.5 x 1.6 P
GRB 0.7 x 2.5 P
GRB 1.0 x 4.5 P
GRB 1.4 x 6.0 P
GRB 0.4×1.3 P
GRB 0.6 x 1.6 P
GRB 0.8 x 2.7 P
GRB 1.0 x 5.0 P
GRB 1.4 x 7.0 P
Calculation Formula
Channel Height 0.8mm Plastic Creasing Matrix Cutting Machine GRB0.8*2.5mm for Die Cutter 16
Channel Height 0.8mm Plastic Creasing Matrix Cutting Machine GRB0.8*2.5mm for Die Cutter 17
Method to choose creasing matrix size for cardboard paper. Size table ( subject to 23.8 mm die-cutting rules)
Channel Height 0.8mm Plastic Creasing Matrix Cutting Machine GRB0.8*2.5mm for Die Cutter 18
For instance: the thickness of the cardboard: 0.52mm; the thickness of creasing rules: 0.71mm, according to calculation formula: A=0.52≈0.5(mm); B=0.52 x 1.5 +0.71 = 1.49 ≈1.5(mm),so we should choose the size of 0.5 x 1.5.
Method to choose creasing matrix size for corrugated paper. Size table ( subject to 23.8 mm die-cutting rules)
Channel Height 0.8mm Plastic Creasing Matrix Cutting Machine GRB0.8*2.5mm for Die Cutter 19
Remarks: the above blanks just for reference and the exact specification suitable for your job should be chosen according to your actual conditions and material thickness.
Channel Height 0.8mm Plastic Creasing Matrix Cutting Machine GRB0.8*2.5mm for Die Cutter 20
Channel Height 0.8mm Plastic Creasing Matrix Cutting Machine GRB0.8*2.5mm for Die Cutter 21
Channel Height 0.8mm Plastic Creasing Matrix Cutting Machine GRB0.8*2.5mm for Die Cutter 22
Finished Box after Die Cutting
Channel Height 0.8mm Plastic Creasing Matrix Cutting Machine GRB0.8*2.5mm for Die Cutter 23
Channel Height 0.8mm Plastic Creasing Matrix Cutting Machine GRB0.8*2.5mm for Die Cutter 24
Channel Height 0.8mm Plastic Creasing Matrix Cutting Machine GRB0.8*2.5mm for Die Cutter 25
Channel Height 0.8mm Plastic Creasing Matrix Cutting Machine GRB0.8*2.5mm for Die Cutter 26
Channel Height 0.8mm Plastic Creasing Matrix Cutting Machine GRB0.8*2.5mm for Die Cutter 27
Channel Height 0.8mm Plastic Creasing Matrix Cutting Machine GRB0.8*2.5mm for Die Cutter 28
Channel Height 0.8mm Plastic Creasing Matrix Cutting Machine GRB0.8*2.5mm for Die Cutter 29
Channel Height 0.8mm Plastic Creasing Matrix Cutting Machine GRB0.8*2.5mm for Die Cutter 30
Q1: Are you factory direct?
A1:Beijing Graphic Inte’l Trade company as a professional creasing matrix and paper cutting knife manufacturer was established in 2012, specialized in die cutting creasing matrix, paper cutting knife and paper drill bits and pneumatic waste stripper and other related products.
Our products are mainly exported to USA, Canada, Europe, South America, etc.Over 120 countries and area.

Q2:What’s your product ranges?
A2: Our main product is packaging material, main product are die cutting creasing matrix, paper cutting knives , paper drill bits, pneumatic waste stripper and so on.

Q3:Do you have a special price and service for wholesale?
A3: Beijing Graphic Inte’l Trade company is keeping search a long term business cooperation with our clients as a professional creasing matrix manufacturer.
we can OEM &ODM for our cilents, fully support and assist on service, to offer you the most competitive price with high quality product.

Q4: What payment methods can I use? And how secure is my payment?
A4: Beijing Graphic Inte’l Trade company accept your payment through Paypal, Bank Transfer,Western Union,etc.

Q5:How long does it take for my order to be shipped? And how long can I receive it?
A5:Generally, your order will be shipped within 3~7 working days after your payment received by us.
Beijing Graphic Inte’l Trade company devotes to be a fastest delivery led lights supplier.

Q6: How about the warranty?
A6: Beijing Graphic Inte’l Trade company welcome you to contact us at 24 hours per day, 7 days per week, your any question will be highly appreciated. hotline: 0086-10-87227832
