Name: Graphic Pneumatic Waste Stripper Machine GR-4500 for Waste Paper Carton Boxes NW 8kg
Brand: Graphic
SKU: Graphic
Price: 510.00 USD
Availability: InStock
Rating: 4.9 (100 reviews)

Home > products > Waste Stripper >

Graphic Pneumatic Waste Stripper Machine GR-4500 for Waste Paper Carton Boxes NW 8kg

Place of Origin:

Beijing, China

Brand Name:

Graphic

Request A Quote

Product Details

Air Consumption:

12CFM

Air Pressure:

0.65-0.8MPa

Rotation Speed:

4500RPM

Equipped With:

Hose/Tool/Oil Bottle

Net Weight:

4.2kgs

Dimension:

450x180x200mm

Gas Pressure:

6-8kg

Gas Pipe Diameter:

8*12mm

After Warranty Service:

Video Technical Support

NW:

8kg

Payment & Shipping Terms

Minimum Order Quantity

Price

$510.00/sets 1-1 sets

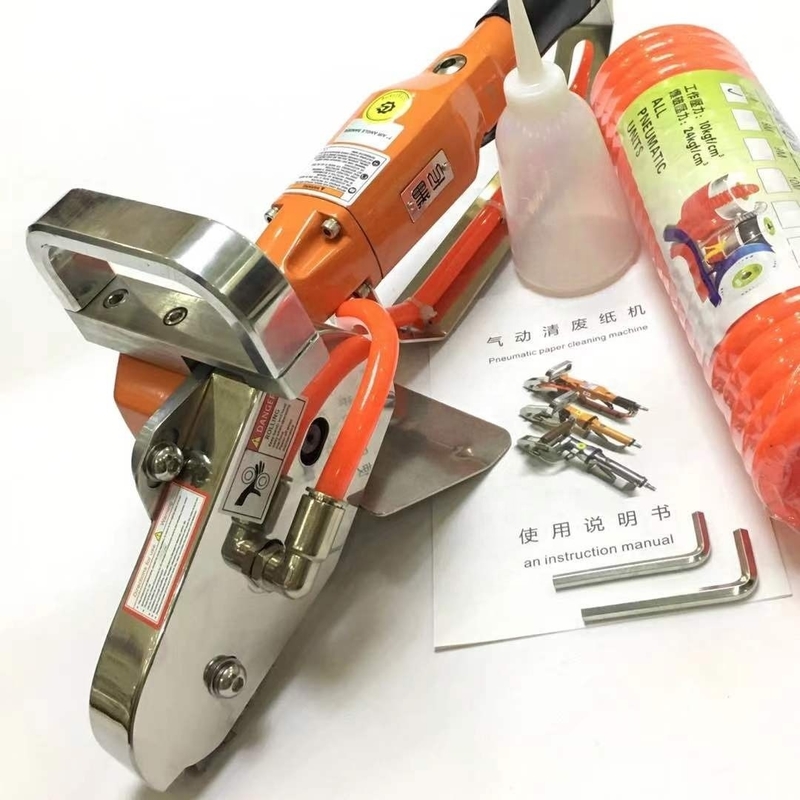

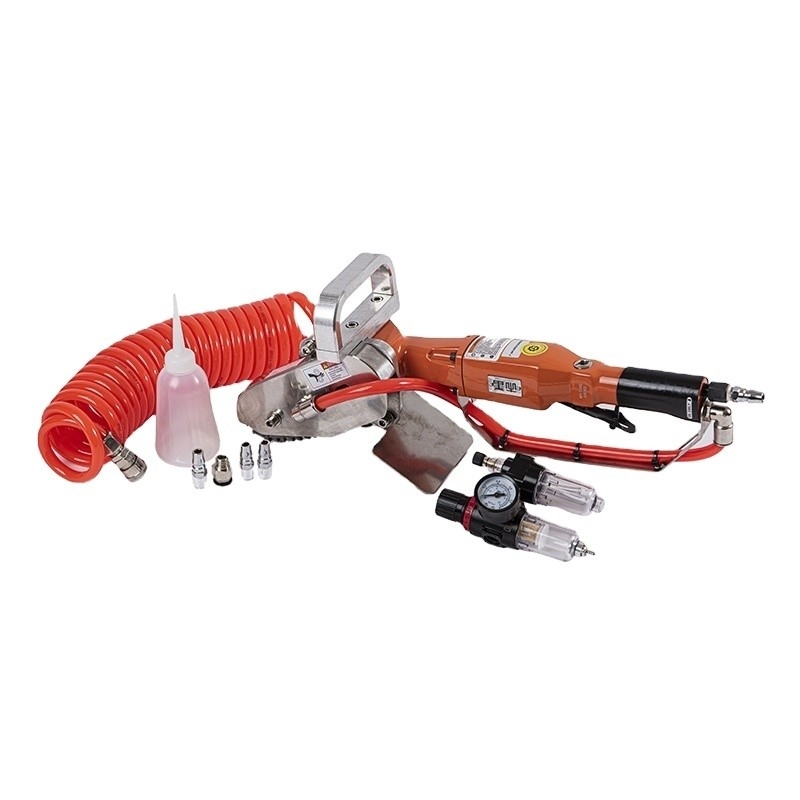

Packaging Details

Carton box making Die cutting GR-4500 pneumatic waste stripper
Packing:1 pc waste stripper;
1 pc water -oil seperator
1 pc air pipe 12m long
1 set of instructions
carton size:50x25

Beijing Graphic Paper Carton Die Cutting Pneumatic Waste Stripper Machines 12CFM

Get Best Price

4500 Rotation Speed Super March Pneumatic White Cardboard Waste Stripper Machine

Get Best Price

Graphic Beijing Roll Paper Cutting Folding Machinecarton box waste paper cleaning stripper

Get Best Price

Handle Heavy Carton Waste with Graphic Beijing 2021 Pneumatic Stripper 9 kg Capacity

Get Best Price

Contact Now

Product Description

Prodect Name	GJGR-018 (Gun shape)
Min Hole Width	2.0mm+
Min Hole Dia	1.5mm+
Drop bar diameter	2-4 mm
Punching Times	1000 BPM
Air pressure	6.5kg
NW	1kgs
GW	2kgs
Warranty Period	6 months for machine only Advantages: fast ,easy to use，especially for short,small stripping jobs

Prodect Name	GJGR-018(Round)
Min Hole Width	2.0mm+
Min Hole Dia	1.5mm+
Overll Size	112x70x115mm
Punching Times	1000 BPM
Air pressure	6-8kg
Packaging	NW: 1kg GW: 2kgs
Air Pipe Dia	8-12mm
Warranty Period	6 months for machine only Advantages: fast ,easy to use，especially for short,small stripping jobs

Model: Pneumatic Hand held Inner Hole Stripping tool

（advanced handy tool for paper stripping after die cutting）

Mainly used raw materials are：

• high alloy tool steel (Taiwan imported motor)
• White steel
• Stainless steel(outer cover)
• Easy to use ,especially for shot & small stripping jobs
• Available in round & flat moulding

Our products are available as：
• Pneumatic Hand held Inner Hole Stripping tool(round)
• Pneumatic Hand held Inner Hole Stripping tool(gun shape)

Standard package

Inner Hole Stripping Tool: 1pc

Air House:6m

Round stripping pin: 1pc

Flat stripping pin: 1pc

Empty Oil Bottle: 1pc

7-Shaped Wrench: 1pc

Screw:2 groups

Round pin diameter:5/8/10mm

Thickness of round pin:1.5/2mm

Thickness of flat pin:12/20/40mm

Deluxe Pack

Inner Hole Stripping Tool: 1pc

Air House:6m

Round stripping pin: 3pcs

Flat stripping pin: 5pcs

Empty Oil Bottle: 1pc

7-Shaped Wrench: 2pcs

Screw:4 groups

Round pin diameter:5/8/10mm

Thickness of round pin:1.5/2mm

Thickness of flat pin:12/20/40mm

1. Articial stripping to 3 hours, stripping machine 10 to 30 minutes to complete, greatly shorten the delivery cycle：

2. The stripping machine structure is compact, the weight and portable polishing machine is the same as the common used, use very convenient, men and women after simple training can operation; the damage of adhesive part;

3. Clear the waste, improve the effciency of process after the (automatic posting box/packaging);

4. The stripping machine power supply adopts Taiwan pneumatic motor, there is no carton brush like ordinary hand-held polisher damageable problem,and good safety, equipment long service life;

5. The tooth chain of stripping machine adopts high strength alloy steel after heat treatment process, high hardness, wear resistance,long service life, and easy to replace

6. Reducing the occurrence of industrial injury, and other outside, Such as wrist, back, shoulder injuries and repetitive operation motion;

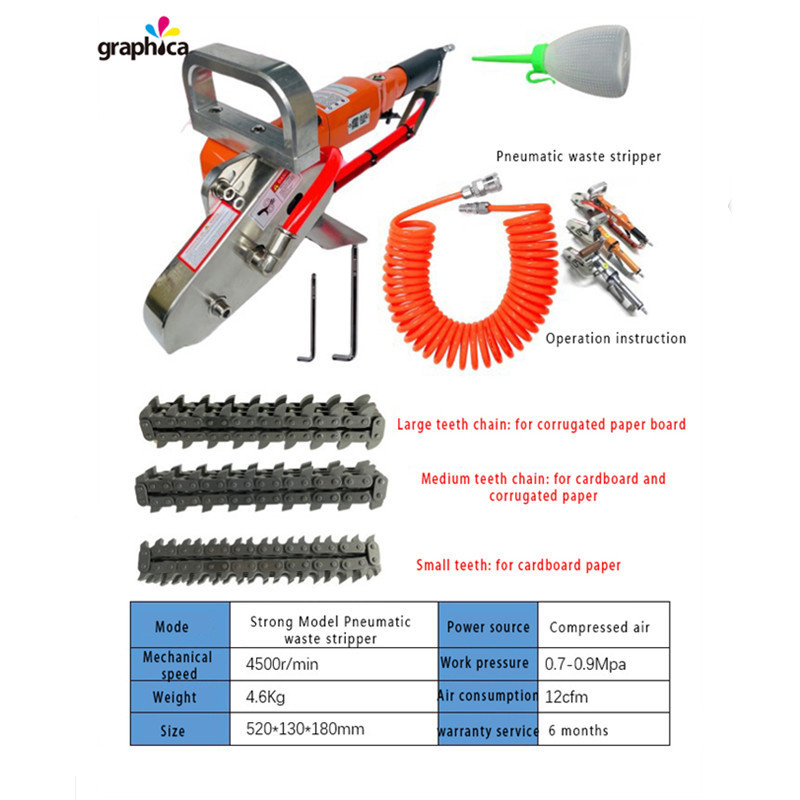

7. Three different teeth chain for various cardboard box or corrugated carton stripping as following:
small teeth for carboard /medium teeth for carboard & corrugated paper / large teeth for corrugated paper

Hand-held Pneumatic Inner hole Stripping tool

1.Before/after each use, you need to drop 3 drops of pneumatic tool oil or diesel oil to the air inlet, plug in the air pipe and press a few times. (If used continuously for a long time, it is advisable to drop once every 2 hours) 2. After connecting the air source, grasp the top with your palms and press down vertically to start working.

3. During in use, always check whether the punching pin is locked firmly or not, and lock it immediately if it is loose.

4. When not in use, unplug the connector or turn off the air source in time.

5. If there is any malfunction, please stop using it and repair it in time or contact us.

Selling Units	Single item
Single package size	450130180mm
Single gross weight	3.000 kg
Package Type	Manual die cutting carboard paper and corrugated pneumatic Pneumatic Hand held Inner Hole Stripping tool
Packing	1 pc Pneumatic Hand held Inner Hole Stripping
	1 pc ruler
	1 pc big ruler
carton size	450130180mm
Weight	3.5kgs
Delivery	within 3-10 days upon receive payment
Lead Time	Quantity(Sets) 1 - 100 >100 Est.
	Time(days) 1 5 To be negotiated

Failure Phenomenon	Reason Analysis	Elimination Method
Switch (air leak)	Switch blocked	Clean the switch spare parts inside Change O-ring
	O-ring damaged
Side bar air leakage	1.O-ring damaged in air cylinder	Change O-ring
Stripping power got less	1. Air pressure not enough 2. Lack of lubricant oil 3.O -type Stripping pin damaged 4.Front edge of stripping pin got worn	Adjust the air pressure higher Add lubricant oil Change O-type stripping pin Change stripping pin
Stripping Power got stronger	Buffer cushion damaged	Change buffer cushion
intermittent stop	1. lack of lubricant oil 2. Air pressure not enough 3. Stuff blocked in the pin 4. Thrust module broken 5. Stripping pin broken 6. O-ring worn	Add lubricant oil Adjust air pressure higher Clean the inner stripping pin Change thrust module Change stripping pin Change O-ring
Upper lip got air leakage	O-ring broken	Change O-ring

Q1: Are you factory direct?
A1:Beijing Graphic Inte’l Trade company as a professional creasing matrix and paper cutting knife manufacturer was established in 2012, specialized in die cutting creasing matrix, paper cutting knife and paper drill bits and pneumatic waste stripper and other related products.
Our products are mainly exported to USA, Canada, Europe, South America, etc.Over 120 countries and area.

Q2:What’s your product ranges?
A2: Our main product is packaging material, main product are die cutting creasing matrix, paper cutting knives , paper drill bits, pneumatic waste stripper and so on.

Q3:Do you have a special price and service for wholesale?
A3: Beijing Graphic Inte’l Trade company is keeping search a long term business cooperation with our clients as a professional creasing matrix manufacturer.

we can OEM &ODM for our cilents, fully support and assist on service, to offer you the most competitive price with high quality product.

Q4: What payment methods can I use? And how secure is my payment?
A4: Beijing Graphic Inte’l Trade company accept your payment through Paypal, Bank Transfer,Western Union,etc.

Q5:How long does it take for my order to be shipped? And how long can I receive it?
A5:Generally, your order will be shipped within 3~7 working days after your payment received by us.

Beijing Graphic Inte’l Trade company devotes to be a fastest delivery led lights supplier.

Q6: How about the warranty?
A6: Beijing Graphic Inte’l Trade company welcome you to contact us at 24 hours per day, 7 days per week, your any question will be highly appreciated. hotline: 0086-10-87227832
