Name: 10000-30000 Sheet Punching Time Beijing Graphic Die Cutting Creasing Matrix in White
Brand: Graphica
SKU: Plastic creasing matrix GRB0.4x1.3mm
Price: 17.00 USD
Availability: InStock
Rating: 4.6 (139 reviews)

Home > products > CITO Creasing Matrix >

10000-30000 Sheet Punching Time Beijing Graphic Die Cutting Creasing Matrix in White

Place of Origin:

Beijing, China

Brand Name:

Graphica

Model Number:

Plastic creasing matrix GRB0.4x1.3mm

Request A Quote

10000-30000 Sheet Punching Time Beijing Graphic Die Cutting Creasing Matrix in White

Product Details

Base Color:

White

Finger Tape:

Imported Finger Tape And Glue

Channel Height:

0.5mm

Punching Time:

10000-30000sheets

Channel Width:

1.4mm

Weight:

1.3kg/box

Application:

For Cardboard & Corrugated Paper Box Die Cutting Making

Name:

Creasing Matrix Die Cutting Creasing Matrix

Payment Terms:

Trade Assurance Order L/C D/A D/P T/T Western Union MoneyGram

Port:

Tianjin,Shenzhen,Qingdao,Shanghai,America

Payment & Shipping Terms

Minimum Order Quantity

Price

$17.00/boxes 1-49 boxes

Packaging Details

China imported finger tape and glue plastic creasing matrix for die cutting
Packing:70cm/pc
50pcs/box
1.1kgs/box,
10boxes/carton
Carton: 73 x 23x 22cm(length x width x height),

Supply Ability

15000 Box/Boxes per Month

Edge Protector Paper Creasing Tool Die Cutting Channel GRB0.4*0.8mmP Creasing Matrix

Get Best Price

CE Certified Super March Quick Shipping Creasing Matrix Cutting Machines with 0.4mm Channel Height

Get Best Price

Graphic Die Cutting Channel Automatic Creasing Matrix Cutter with Imported Finger Tape

Get Best Price

Punching Time 300000 Sheets/Hour Perforating Machine Paper Creasing Matrix for Die Cutting

Get Best Price

Contact Now

Product Description

Series	Plastic based Creasing Matrix
Type	Standard/Narrow/Off-center/Double
Material	PVC base with plastic shoulder
Punching Time	10,000-30,000 times
Application	Developed for small and medium print runs

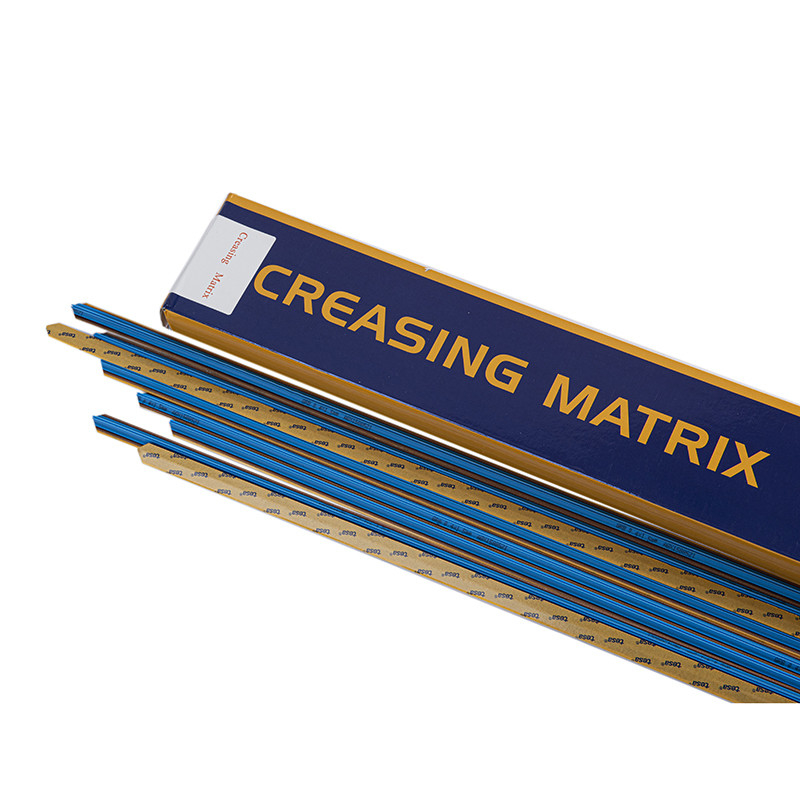

Packing	70cm/pc,50pcs/box,10boxes/carton
Storage Period	2 years
Quality Guarantee	1 year
Notes	Matrix in rolls is available upon demands

Series	Pressboard- based(black imported raw material)
Type	Standard/Narrow
Material	Pressboard base
Punching Time	50,000-80,000 times
Application	Developed for medium and long print runs
Packing	70cm/pc,50pcs/box,10boxes/carton
Storage Period	6 months to 2 years
Notes	Matrix in rolls is available upon demands

Series	Pink Fiber- based(13mm wide base)
Type	Standard / Narrow
Material	Fiber
Punching Time	100,000-300,000 times
Application	Developed for extremely durable print runs
Packing	70cm/pc,50pcs/box,10boxes/carton

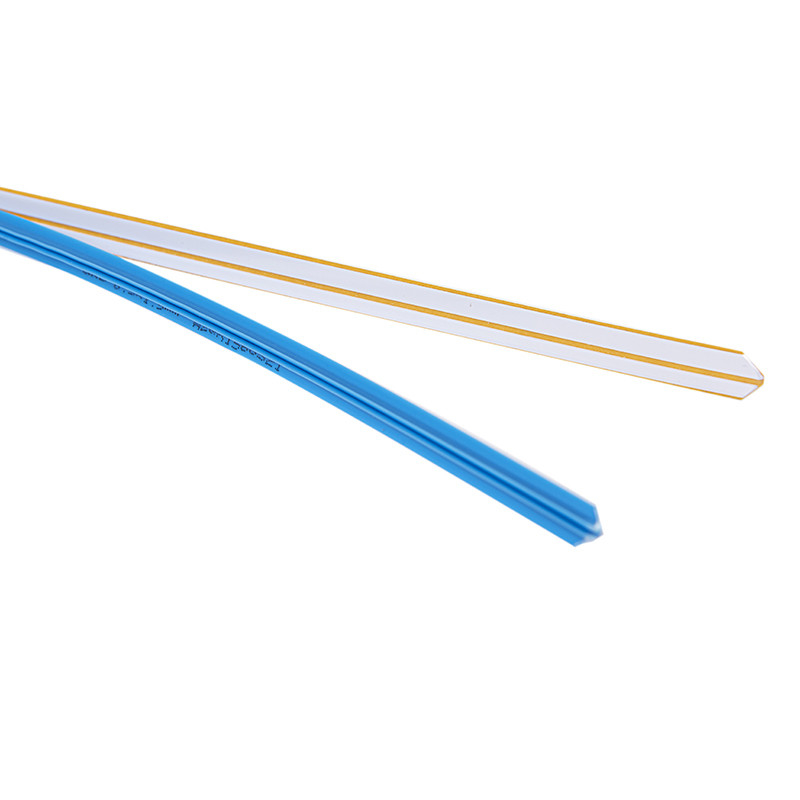

Series	Resin- based(transparent)
Type	Standard / Narrow
Material	Resin base
Punching Time	100,000-300,000 times
Application	Developed for extremely durable print runs, especially for cigarette & cosmetic &pharmaceutical box making.
Packing	70cm/pc,50pcs/box,10boxes/carton

Featrues:

1. Used more than 77 countries worldwide. World’s most advanced creasing matrix made from plastic, pressboard and pink fiber and resin for various die cutting jobs.
2. Accurate locator – ensures perfect registration
3. Low profile chamfer – board flows freely over the matrix; board marking is reduced

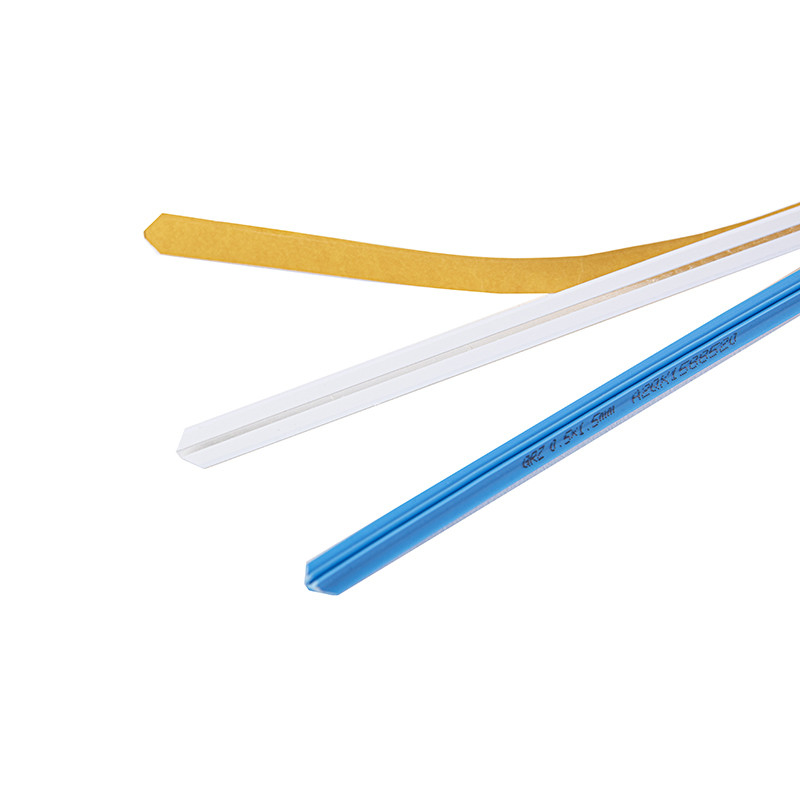

4. Finger lift adhesive tape – backing paper easily and quickly removed
5. New and strong adhesive removes cleanly from the plate after use, will not move about during die cutting jobs
6. Special sizes available to suit all board types, off-centers and multi-crease for close creasing rule
7. It is extremely durable and accurate and provides benefits in time and cost.

Material characteristics

1.Plastic (PVC) –easy to extrude & chamfer, good durability, cannot delaminate

2.Pressboard – expensive, easy to chamfer, stronger durability, can delaminate

3.Pink fibre – very resistant and durable, easy to chamfer, expensive

4.Pertinax – the most durable product available but only available in smaller thicknesses and not all sizes. Impossible to chamfer, can use sand paper to chamfer.

1. Measure the length of the creasing rule

2. Mark the measurement and cut the matrix

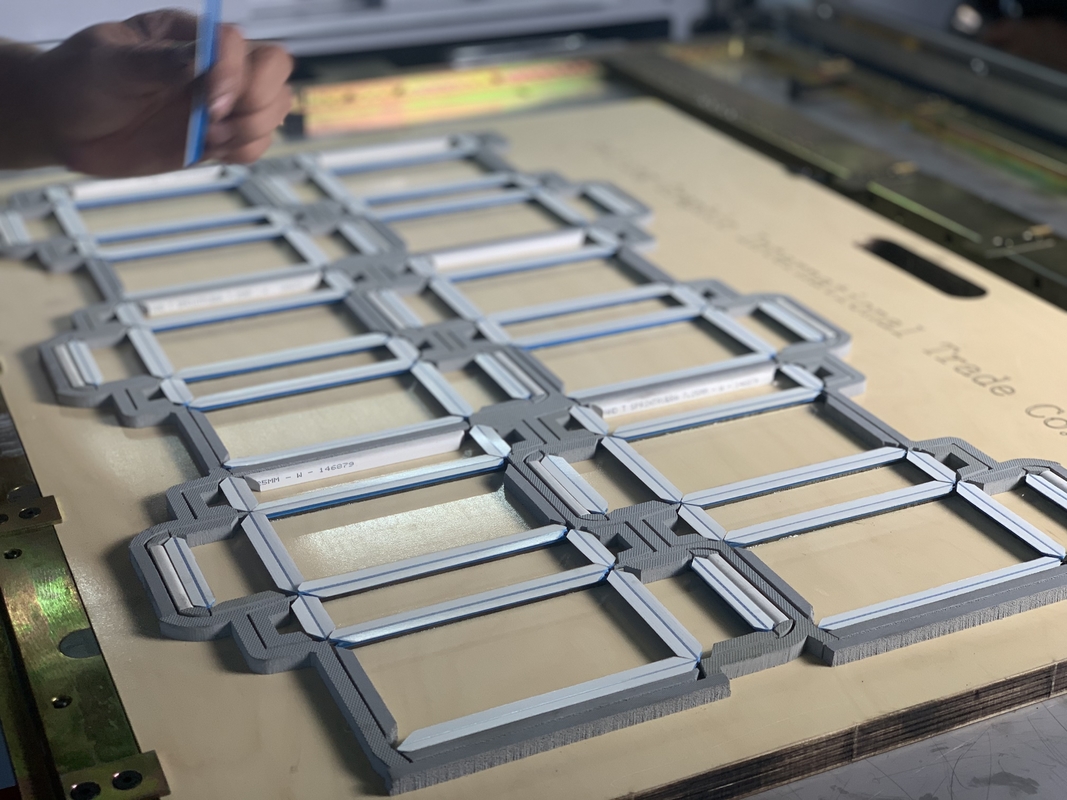

3. Mount the cutting piece into the creasing rule with locator
4.Remove all of the backing tapes

5. Transfer the matrix to the die cutting steel plate
6.Remove all of the locators

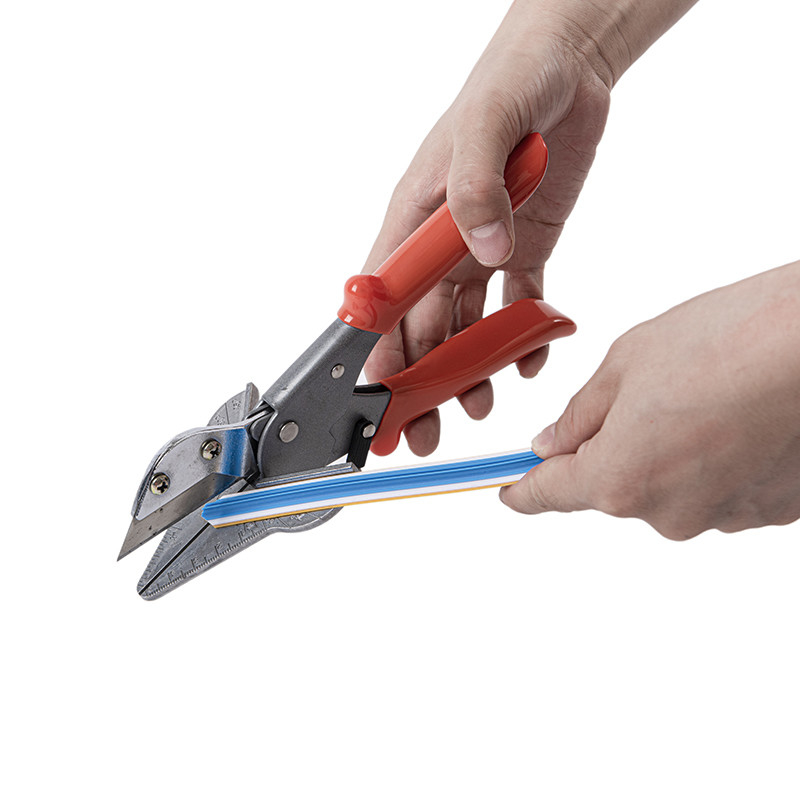

7. Miter the sharp angle

Plastic-based Size Table

H x W mm	H x W mm	H x W mm	H x W mm	H x W mm
GRB 0.3×0.8 P	GRB 0.5 x 1.2 P	GRB 0.6 x 1.7 P	GRB 1.0 x 3.0 P	GRB 1.2 x 4.0 P
GRB 0.3×1.0 P	GRB 0.5 x 1.3 P	GRB 0.6 x 1.9 P	GRB 1.0 x 3.2 P	GRB 1.2 x 4.5 P
GRB 0.3×1.2 P	GRB 0.5 x 1.4 P	GRB 0.7 x 2.1 P	GRB 1.0 x 3.5 P	GRB 1.2 x 5.0 P
GRB 0.4×1.0 P	GRB 0.5 x 1.5 P	GRB 0.7 x 2.3 P	GRB 1.0 x 4.0 P	GRB 1.2 x 6.0 P
GRB 0.4×1.2 P	GRB 0.5 x 1.6 P	GRB 0.7 x 2.5 P	GRB 1.0 x 4.5 P	GRB 1.4 x 6.0 P
GRB 0.4×1.3 P	GRB 0.6 x 1.6 P	GRB 0.8 x 2.7 P	GRB 1.0 x 5.0 P	GRB 1.4 x 7.0 P

Calculation Formula

Method to choose creasing matrix size for cardboard paper. Size table ( subject to 23.8 mm die-cutting rules)

For instance: the thickness of the cardboard: 0.52mm; the thickness of creasing rules: 0.71mm, according to calculation formula: A=0.52≈0.5(mm); B=0.52 x 1.5 +0.71 = 1.49 ≈1.5(mm),so we should choose the size of 0.5 x 1.5.

Method to choose creasing matrix size for corrugated paper. Size table ( subject to 23.8 mm die-cutting rules)

Remarks: the above blanks just for reference and the exact specification suitable for your job should be chosen according to your actual conditions and material thickness.

Finished Box after Die Cutting

Q1: Are you factory direct?
A1:Beijing Graphic Inte’l Trade company as a professional creasing matrix and paper cutting knife manufacturer was established in 2012, specialized in die cutting creasing matrix, paper cutting knife and paper drill bits and pneumatic waste stripper and other related products.
Our products are mainly exported to USA, Canada, Europe, South America, etc.Over 120 countries and area.

Q2:What’s your product ranges?
A2: Our main product is packaging material, main product are die cutting creasing matrix, paper cutting knives , paper drill bits, pneumatic waste stripper and so on.

Q3:Do you have a special price and service for wholesale?
A3: Beijing Graphic Inte’l Trade company is keeping search a long term business cooperation with our clients as a professional creasing matrix manufacturer.

we can OEM &ODM for our cilents, fully support and assist on service, to offer you the most competitive price with high quality product.

Q4: What payment methods can I use? And how secure is my payment?
A4: Beijing Graphic Inte’l Trade company accept your payment through Paypal, Bank Transfer,Western Union,etc.

Q5:How long does it take for my order to be shipped? And how long can I receive it?
A5:Generally, your order will be shipped within 3~7 working days after your payment received by us.

Beijing Graphic Inte’l Trade company devotes to be a fastest delivery led lights supplier.

Q6: How about the warranty?
A6: Beijing Graphic Inte’l Trade company welcome you to contact us at 24 hours per day, 7 days per week, your any question will be highly appreciated. hotline: 0086-10-87227832
