Manual Auto Die Cutter Machine Cindy GRB 0.5*1.5 Creasing Matrix Cutter with Pvc Base

Manual Auto Die Cutter Machine Cindy GRB 0.5*1.5 Creasing Matrix Cutter with Pvc Base

Place of Origin:

Beijing China

Brand Name:

Graphic, Graphic

Model Number:

GRB 0.5*1.5MM

Contact Us
Request A Quote
Manual Auto Die Cutter Machine Cindy GRB 0.5*1.5 Creasing Matrix Cutter with Pvc Base Manual Auto Die Cutter Machine Cindy GRB 0.5*1.5 Creasing Matrix Cutter with Pvc Base Manual Auto Die Cutter Machine Cindy GRB 0.5*1.5 Creasing Matrix Cutter with Pvc Base Manual Auto Die Cutter Machine Cindy GRB 0.5*1.5 Creasing Matrix Cutter with Pvc Base Manual Auto Die Cutter Machine Cindy GRB 0.5*1.5 Creasing Matrix Cutter with Pvc Base Manual Auto Die Cutter Machine Cindy GRB 0.5*1.5 Creasing Matrix Cutter with Pvc Base
Product Details
Name:
18N~30N
Material:
Pvc Base
Size:
Customized Size
Packing:
70cm/pc 50pcs/box
Length:
1.5kgs
Weight:
2kg
Payment Terms:
T.T
Delivery:
3-5 Days
MOQ:
1box
Payment & Shipping Terms
Minimum Order Quantity
1
Price
$16.00/pieces >=500 pieces
RELATED PRODUCTS
Good price Edge Protector Paper Creasing Tool Die Cutting Channel GRB0.4*0.8mmP Creasing Matrix online

Edge Protector Paper Creasing Tool Die Cutting Channel GRB0.4*0.8mmP Creasing Matrix

Get Best Price
Good price CE Certified Super March Quick Shipping Creasing Matrix Cutting Machines with 0.4mm Channel Height online

CE Certified Super March Quick Shipping Creasing Matrix Cutting Machines with 0.4mm Channel Height

Get Best Price
Good price Graphic Die Cutting Channel Automatic Creasing Matrix Cutter with Imported Finger Tape online

Graphic Die Cutting Channel Automatic Creasing Matrix Cutter with Imported Finger Tape

Get Best Price
Good price Punching Time 300000 Sheets/Hour Perforating Machine Paper Creasing Matrix for Die Cutting online

Punching Time 300000 Sheets/Hour Perforating Machine Paper Creasing Matrix for Die Cutting

Get Best Price
Contact Us
Contact Now
Product Description
Manual Auto Die Cutter Machine Cindy GRB 0.5*1.5 Creasing Matrix Cutter with Pvc Base 0
Manual Auto Die Cutter Machine Cindy GRB 0.5*1.5 Creasing Matrix Cutter with Pvc Base 1
Manual Auto Die Cutter Machine Cindy GRB 0.5*1.5 Creasing Matrix Cutter with Pvc Base 2
Series
Plastic based Creasing Matrix
Type
Standard/Narrow/Off-center/Double
Material
PVC base with plastic shoulder
Punching Time
10,000-30,000 times
Application
Developed for small and medium print runs

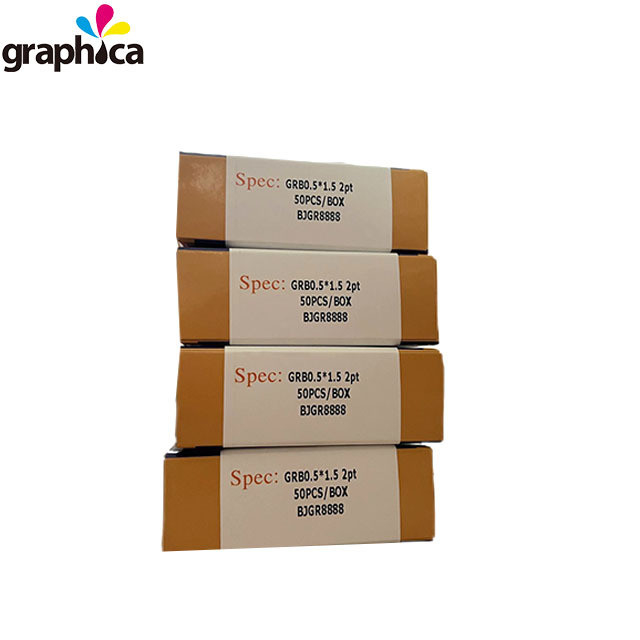

Packing
70cm/pc,50pcs/box,10boxes/carton
Storage Period
2 years
Quality Guarantee
1 year
Notes
Matrix in rolls is available upon demands
Manual Auto Die Cutter Machine Cindy GRB 0.5*1.5 Creasing Matrix Cutter with Pvc Base 3
Manual Auto Die Cutter Machine Cindy GRB 0.5*1.5 Creasing Matrix Cutter with Pvc Base 4
Manual Auto Die Cutter Machine Cindy GRB 0.5*1.5 Creasing Matrix Cutter with Pvc Base 5
Manual Auto Die Cutter Machine Cindy GRB 0.5*1.5 Creasing Matrix Cutter with Pvc Base 6
Manual Auto Die Cutter Machine Cindy GRB 0.5*1.5 Creasing Matrix Cutter with Pvc Base 7
Manual Auto Die Cutter Machine Cindy GRB 0.5*1.5 Creasing Matrix Cutter with Pvc Base 8
Manual Auto Die Cutter Machine Cindy GRB 0.5*1.5 Creasing Matrix Cutter with Pvc Base 9
Manual Auto Die Cutter Machine Cindy GRB 0.5*1.5 Creasing Matrix Cutter with Pvc Base 10

Material characteristics

1.Plastic (PVC) –easy to extrude & chamfer, good durability, cannot delaminate

2.Pressboard – expensive, easy to chamfer, stronger durability, can delaminate

3.Pink fibre – very resistant and durable, easy to chamfer, expensive

4.Pertinax – the most durable product available but only available in smaller thicknesses and not all sizes. Impossible to chamfer, can use sand paper to chamfer.
Manual Auto Die Cutter Machine Cindy GRB 0.5*1.5 Creasing Matrix Cutter with Pvc Base 11
Manual Auto Die Cutter Machine Cindy GRB 0.5*1.5 Creasing Matrix Cutter with Pvc Base 12

1. Measure the length of the creasing rule
2. Mark the measurement and cut the matrix
3. Mount the cutting piece into the creasing rule with locator
4.Remove all of the backing tapes
5. Transfer the matrix to the die cutting steel plate
6.Remove all of the locators

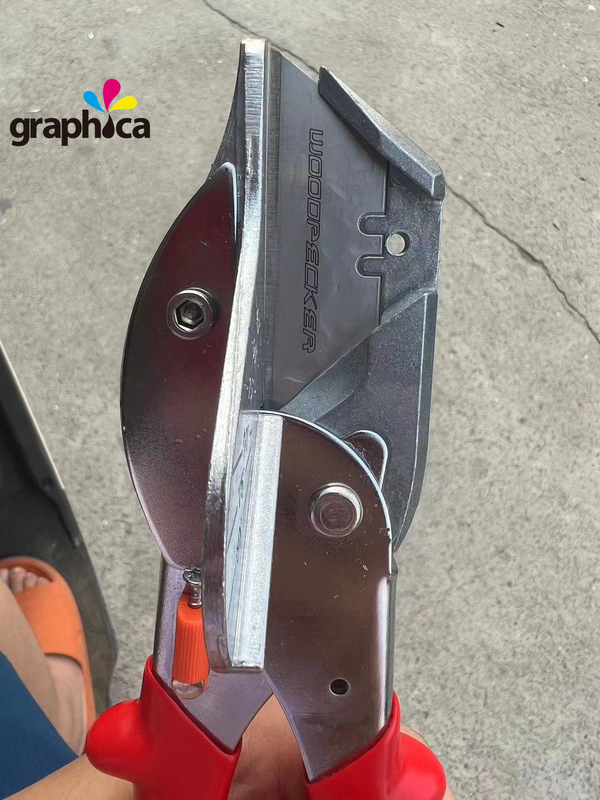

7. Miter the sharp angle
Manual Auto Die Cutter Machine Cindy GRB 0.5*1.5 Creasing Matrix Cutter with Pvc Base 13
Manual Auto Die Cutter Machine Cindy GRB 0.5*1.5 Creasing Matrix Cutter with Pvc Base 14
Manual Auto Die Cutter Machine Cindy GRB 0.5*1.5 Creasing Matrix Cutter with Pvc Base 15
Manual Auto Die Cutter Machine Cindy GRB 0.5*1.5 Creasing Matrix Cutter with Pvc Base 16
Plastic-based Size Table
H x W mm
H x W mm
H x W mm
H x W mm
H x W mm
GRB 0.3×0.8 P
GRB 0.5 x 1.2 P
GRB 0.6 x 1.7 P
GRB 1.0 x 3.0 P
GRB 1.2 x 4.0 P
GRB 0.3×1.0 P
GRB 0.5 x 1.3 P
GRB 0.6 x 1.9 P
GRB 1.0 x 3.2 P
GRB 1.2 x 4.5 P
GRB 0.3×1.2 P
GRB 0.5 x 1.4 P
GRB 0.7 x 2.1 P
GRB 1.0 x 3.5 P
GRB 1.2 x 5.0 P
GRB 0.4×1.0 P
GRB 0.5 x 1.5 P
GRB 0.7 x 2.3 P
GRB 1.0 x 4.0 P
GRB 1.2 x 6.0 P
GRB 0.4×1.2 P
GRB 0.5 x 1.6 P
GRB 0.7 x 2.5 P
GRB 1.0 x 4.5 P
GRB 1.4 x 6.0 P
GRB 0.4×1.3 P
GRB 0.6 x 1.6 P
GRB 0.8 x 2.7 P
GRB 1.0 x 5.0 P
GRB 1.4 x 7.0 P
Calculation Formula
Manual Auto Die Cutter Machine Cindy GRB 0.5*1.5 Creasing Matrix Cutter with Pvc Base 17
Manual Auto Die Cutter Machine Cindy GRB 0.5*1.5 Creasing Matrix Cutter with Pvc Base 18
Method to choose creasing matrix size for cardboard paper. Size table ( subject to 23.8 mm die-cutting rules)
Manual Auto Die Cutter Machine Cindy GRB 0.5*1.5 Creasing Matrix Cutter with Pvc Base 19
For instance: the thickness of the cardboard: 0.52mm; the thickness of creasing rules: 0.71mm, according to calculation formula: A=0.52≈0.5(mm); B=0.52 x 1.5 +0.71 = 1.49 ≈1.5(mm),so we should choose the size of 0.5 x 1.5.
Method to choose creasing matrix size for corrugated paper. Size table ( subject to 23.8 mm die-cutting rules)
Manual Auto Die Cutter Machine Cindy GRB 0.5*1.5 Creasing Matrix Cutter with Pvc Base 20
Remarks: the above blanks just for reference and the exact specification suitable for your job should be chosen according to your actual conditions and material thickness.
Finished Box after Die Cutting
Manual Auto Die Cutter Machine Cindy GRB 0.5*1.5 Creasing Matrix Cutter with Pvc Base 21
Manual Auto Die Cutter Machine Cindy GRB 0.5*1.5 Creasing Matrix Cutter with Pvc Base 22
Manual Auto Die Cutter Machine Cindy GRB 0.5*1.5 Creasing Matrix Cutter with Pvc Base 23
Manual Auto Die Cutter Machine Cindy GRB 0.5*1.5 Creasing Matrix Cutter with Pvc Base 24
Manual Auto Die Cutter Machine Cindy GRB 0.5*1.5 Creasing Matrix Cutter with Pvc Base 25
Manual Auto Die Cutter Machine Cindy GRB 0.5*1.5 Creasing Matrix Cutter with Pvc Base 26
Manual Auto Die Cutter Machine Cindy GRB 0.5*1.5 Creasing Matrix Cutter with Pvc Base 27
Q1: Are you factory direct?
A1:Beijing Graphic Inte’l Trade company as a professional creasing matrix and paper cutting knife manufacturer was established in 2012, specialized in die cutting creasing matrix, paper cutting knife and paper drill bits and pneumatic waste stripper and other related products.
Our products are mainly exported to USA, Canada, Europe, South America, etc.Over 120 countries and area.

Q2:What’s your product ranges?
A2: Our main product is packaging material, main product are die cutting creasing matrix, paper cutting knives , paper drill bits, pneumatic waste stripper and so on.

Q3:Do you have a special price and service for wholesale?
A3: Beijing Graphic Inte’l Trade company is keeping search a long term business cooperation with our clients as a professional creasing matrix manufacturer.
we can OEM &ODM for our cilents, fully support and assist on service, to offer you the most competitive price with high quality product.

Q4: What payment methods can I use? And how secure is my payment?
A4: Beijing Graphic Inte’l Trade company accept your payment through Paypal, Bank Transfer,Western Union,etc.

Q5:How long does it take for my order to be shipped? And how long can I receive it?
A5:Generally, your order will be shipped within 3~7 working days after your payment received by us.
Beijing Graphic Inte’l Trade company devotes to be a fastest delivery led lights supplier.

Q6: How about the warranty?
A6: Beijing Graphic Inte’l Trade company welcome you to contact us at 24 hours per day, 7 days per week, your any question will be highly appreciated. hotline: 0086-10-87227832
