Name: Full Poplar 16mm 2024 Rotary Die Board Cutting Curved Plywood for Laser Die Cutting
Brand: Graphic
SKU: 250/300/320/360/390/400/420/440/487mmx2.5m-3m
Price: 17.90 USD
Availability: InStock
Rating: 4.6 (190 reviews)

Home > products > Die Board Plywood >

Full Poplar 16mm 2024 Rotary Die Board Cutting Curved Plywood for Laser Die Cutting

Place of Origin:

Beijing

Brand Name:

Graphic

Model Number:

250/300/320/360/390/400/420/440/487mmx2.5m-3m

Request A Quote

Full Poplar 16mm 2024 Rotary Die Board Cutting Curved Plywood for Laser Die Cutting

Product Details

Name:

Rotary Die Board Cutting Curved Plywood For Die Making

Application:

Die Making

Warranty:

1 Year

Material:

Full Birch/Half Birch/Full Poplar/Basswood(with/without UV Varnish)

Size:

250/300/320/360/390/400/420/440/487mmx2.5m-3m

Thickness:

9mm,12mm,15mm,16mm,18mm,20mm,22mm

Moisture:

< 6%-8%

Face:

Front & Back Birch Must Be 0.7 To 1mm Both Side

Cold Press Time:

30-43min

Hot Press Time:

50min

Payment & Shipping Terms

Minimum Order Quantity

Price

$17.90/meters 1000-2999 meters

Offset Printing Rubber Printing Blanket with 6.5um Roughness and 4/3 Layers Structure

Get Best Price

YQ-50N Manual Creasing Matrix Cutter 0.4 Die Cutting Machine for Low Maintenance Cost

Get Best Price

GRB0.5*1.4mm Plastic Creasing Matrix For Fast Die Cutting of Cardboard Corrugated Paper

Get Best Price

8x300x380mm High Elastic Green Adhesive EVA Ejection Sponge Rubber for in Beijing 2021

Get Best Price

Contact Now

Product Description

Product	Material	Thickness	Diameter	Length
Rotary Die Board	Beech	13mm	177—180—188—200—210—220—230—240—250—260—270—285—290—300——310—320—360—388—390—410—420—430—440—487—490—500—525—536—575—600—625—635— 676—700—780—800 and so on	1.8m, 2.0m,2.2m, 2.4m, 2.6m, 2.8m, 3.0m

Layers	9 layers + 2layers face、thickness can be customized 13MM, and 15MM, 16MM thickness.
Thickness Calibrated Plywood	+/- 0.3mm tolerance(13mm-13.3mm)
Core Gap	0.2%
Material	Natural drying beech
Core Veneer	Beech, birch (7 layers of beech + 2 layers of birch)
Face	Front & Back Beech Both Side
Face Grade	Beech BB / BB
Glue Grade	E0
Core panel thickness	＜ 2.0mm per layer
Hot press time	55minutes
Rotary Plywood Density	720
Rotary Plywood 3m per sheets weight	3603m：17.54 kgs 4303m：20.58 kgs 4873m：23.06 kgs 5003m：23.62 kgs

Product Features

When we selected beech species, we had already selected the species, annual rings, time of sunshine and the diameter of the species. We will choose tree species with long sunshine time and long annual ring production cycle, and screen out tree species with unstable quality due to insects.

Beech—After the veneer is peeled, we will screen it, and those with stuttered trees and those that do not meet the quality standards will be screened out to make packaging boards. Requirements: veneer—clear texture and obvious tree pattern, reflecting the display of visual sense and quality. The thickness of the veneer - 2.0MM-4.0MM-3.5MM-3.8MM. We adopt the process of matching thickness and hot pressing for 55 minutes to better ensure the inner diameter of the board and the strength of the glue bonding force.

Our veneers are dried naturally, not through the dryer, the dryer is prone to moisture hiding, drying for too long is easy to deform, the veneer is too brittle, and the drying time is not enough to cause moisture hiding and cannot evaporate. Drying naturally is the most traditional and effective way to maintain stability.

Our thickness is controlled at 13MM. Special requirements will be controlled within 13MM-13.3MM. Avoid the quality problems of not being able to fit in and not conforming to the drawings.

Product Details

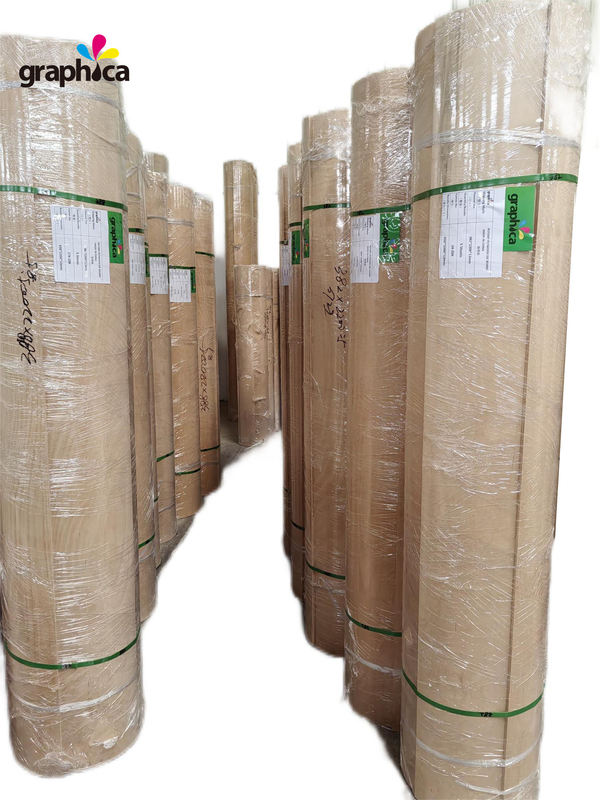

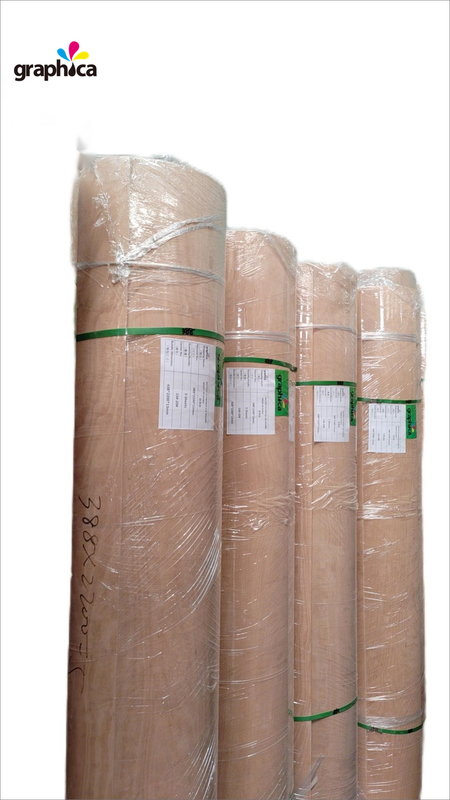

Packaging & Delivery

Q1: Are you factory direct?
A1:Beijing Graphic Inte’l Trade company as a professional creasing matrix and paper cutting knife manufacturer was established in 2012, specialized in die cutting creasing matrix, paper cutting knife and paper drill bits and pneumatic waste stripper and other related products.
Our products are mainly exported to USA, Canada, Europe, South America, etc.Over 120 countries and area.

Q2:What is the thickness tolerance of your plywood？
A2:± 0.2mm

Q3:lf plywood has problems,what will you do?
A3: If low quality percent is more than 5% in total order quantity,we will compensate youthe lost.lt is based on the actual measured data.

Q4: What certificate can you provide?
A4:Till now we have made Form E, CO, certificate and phytosantiary certificate for thecustomer.

Q5:Can you make color pained plywood?
A5:Yes, we can make the color painted plywood. But need the MOQ

Q6: How about the warranty?
A6: Beijing Graphic Inte’l Trade company welcome you to contact us at 24 hours per day, 7 days per week, your any question will be highly appreciated. hotline: 0086-10-87227832
